Power Door Lock Switch Test

Power Door Lock Switch Test

Driver's door (4-door)

1. Remove the power window master switch panel, and disconnect its connector Power Window Master Switch Test/Replacement (4-Door).

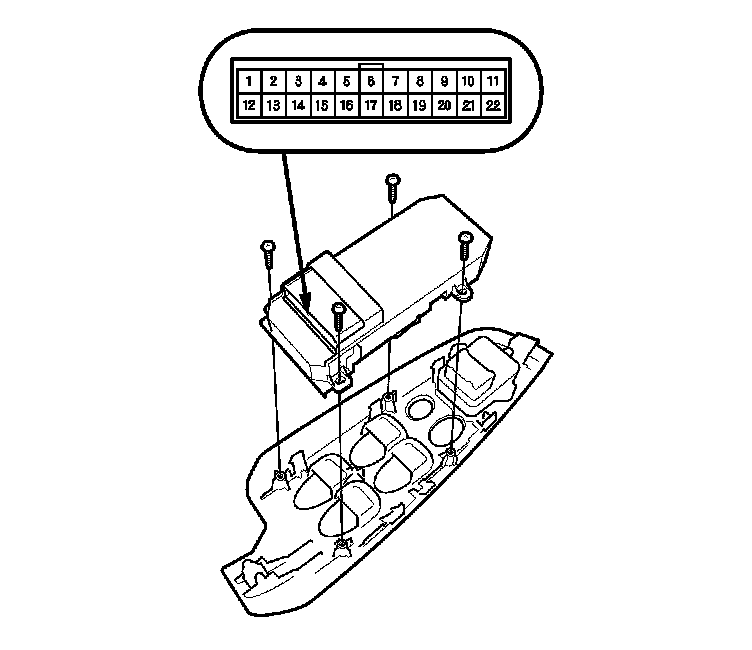

2. Check for continuity between the power window master switch 22P connector terminals.

- There should be continuity between terminals No. 11 and No. 17 when the door lock switch is in the LOCK position.
- There should be no continuity between terminals No. 11 and No. 17 when the door lock switch is in the UNLOCK position.
- There should be continuity between terminals No. 11 and No. 19 when the door lock switch is in the UNLOCK position.
- There should be no continuity between terminals No. 11 and No. 19 when the door lock switch is in the LOCK position.
- There should never be continuity between terminals No. 17 and No. 19 in any door lock switch position.

3. If the continuity is not as specified, replace the switch Power Window Master Switch Test/Replacement (4-Door).

Driver's door (2-door)

1. Remove the power window master switch panel, and disconnect its connector Power Window Master Switch Test/Replacement (2-Door).

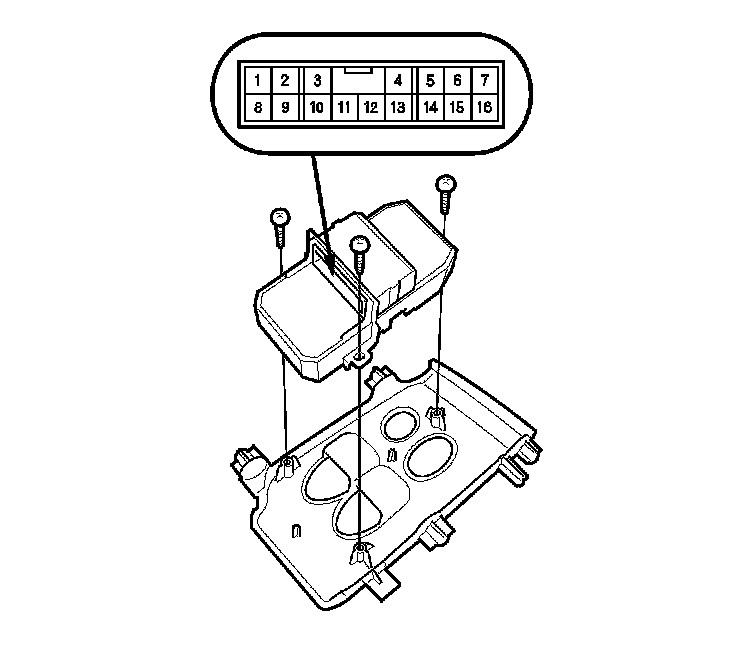

2. Check for continuity between the power window master switch 16P connector terminals.

- There should be continuity between terminals No. 5 and No. 7 when the door lock switch is in the LOCK position.
- There should be no continuity between terminals No. 5 and No. 7 when the door lock switch is in the UNLOCK position.
- There should be continuity between terminals No. 6 and No. 7 when the door lock switch is in the UNLOCK position.
- There should be no continuity between terminals No. 6 and No. 7 when the door lock switch is in the LOCK position.
- There should never be continuity between terminals No. 5 and No. 6 in any door lock switch position.

3. If the continuity is not as specified, replace the switch Power Window Master Switch Input Test (2-Door).

Front passenger's door

1. 4-door: Remove the front passenger's window switch panel Passenger's Power Window Switch Test/Replacement.

2-door: Remove the passenger's power window switch panel Door Panel Removal/Installation (2-Door).

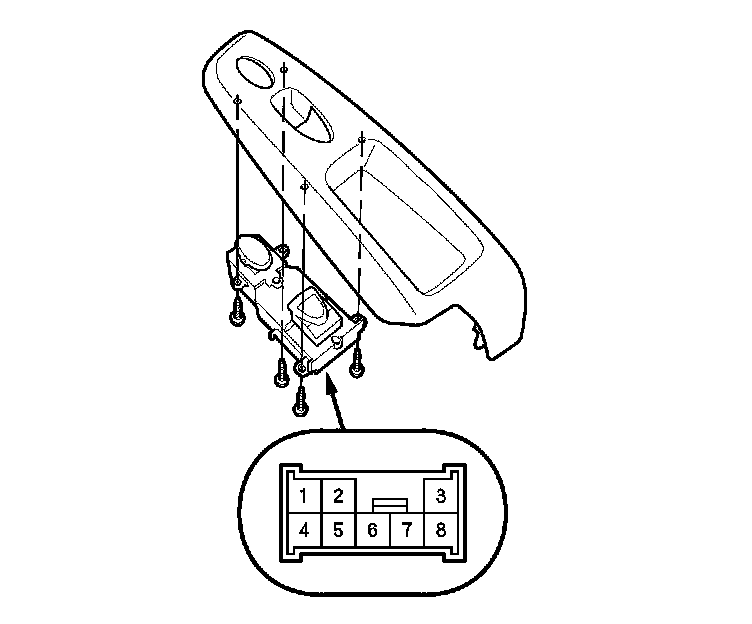

NOTE: The illustration shows the 4-door front passenger's door.





2. Check for continuity between the front passenger's power window switch 8P connector terminals.

- There should be continuity between terminals No. 1 and No. 2 when the door lock switch is in the LOCK position.
- There should be no continuity between terminals No. 1 and No. 2 when the door lock switch is in the UNLOCK position.
- There should be continuity between terminals No. 2 and No. 6 when the door lock switch is in the UNLOCK position.
- There should be no continuity between terminals No. 2 and No. 6 when the door lock switch is in the LOCK position.
- There should never be continuity between terminals No. 1 and No. 6 in any door lock switch position.

3. If the continuity is not as specified, replace the switch Passenger's Power Window Switch Test/Replacement.
