Door Lock Knob Switch Test

Door Lock Knob Switch Test

Driver's Door

1. Remove the driver's door panel.

- 2-door Door Panel Removal/Installation (2-Door)
- 4-door Front Door Panel Removal/Installation (4-Door)

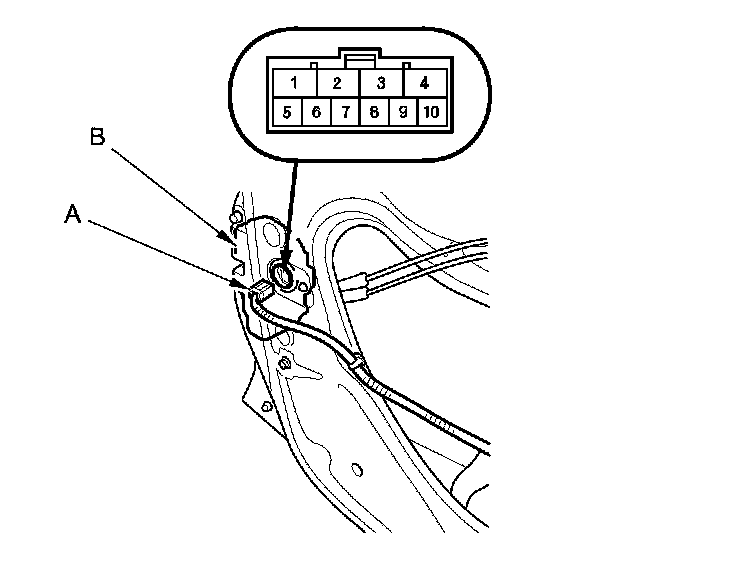

2. Disconnect the 10P connector (A) from the driver's door latch (B).





3. Check for continuity between the terminals.

- There should be continuity between terminals No. 6 and No. 5 when the door lock knob switch is in the LOCK position and no continuity when the switch is in the UNLOCK position.
- There should be continuity between terminals No. 7 and No. 5 when the door lock knob switch is in the UNLOCK position and no continuity when the switch is in the LOCK position.

4. If the continuity is not as specified, the door lock knob switch is faulty. Replace the driver's door latch Service and Repair.

Passenger's Door

1. Remove the passenger's door panel.

- 2-door Door Panel Removal/Installation (2-Door)
- 4-door Front Door Panel Removal/Installation (4-Door)

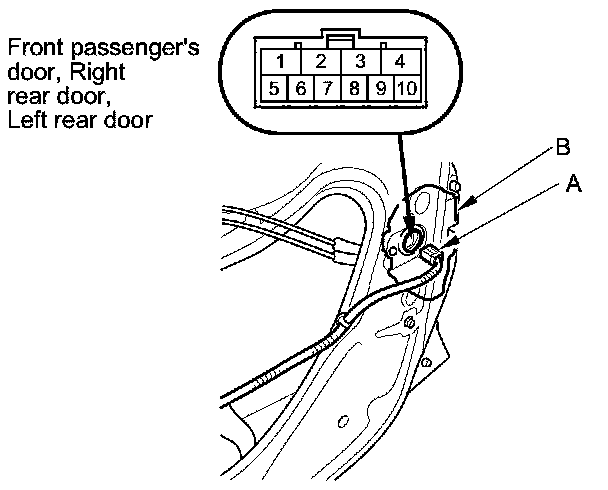

2. Disconnect the 10P connector (A) from the passenger's door latch (B).





3. Check for continuity between the terminals.

There should be continuity between terminals No. 8 [No. 7] and No. 10 [No. 5] when the door lock knob switch in the UNLOCK position and no continuity when the switch is in the LOCK position.

[ ]: Left rear door

4. If the continuity is not specified, .
