Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Locations

Keyless Entry: Locations

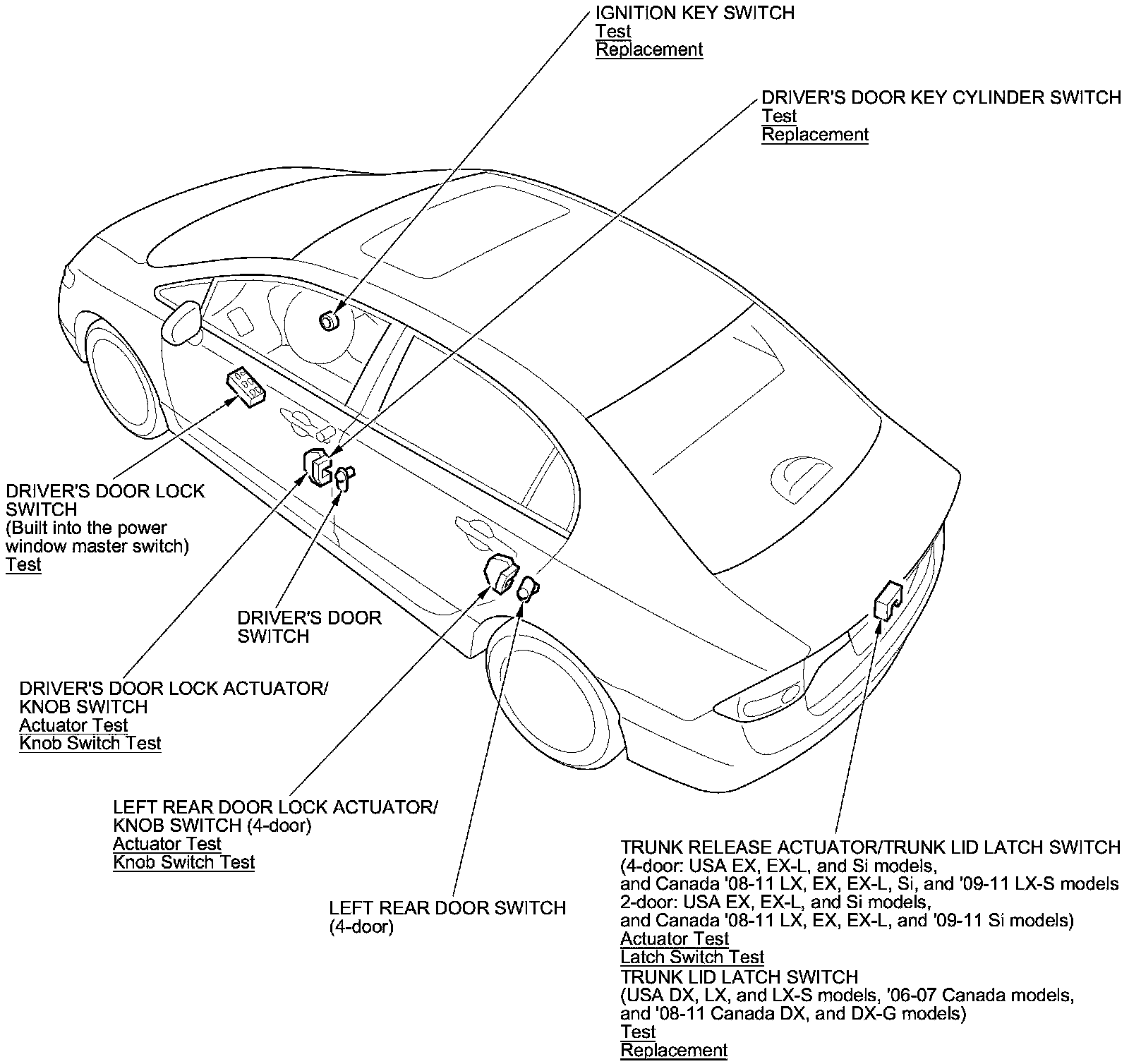

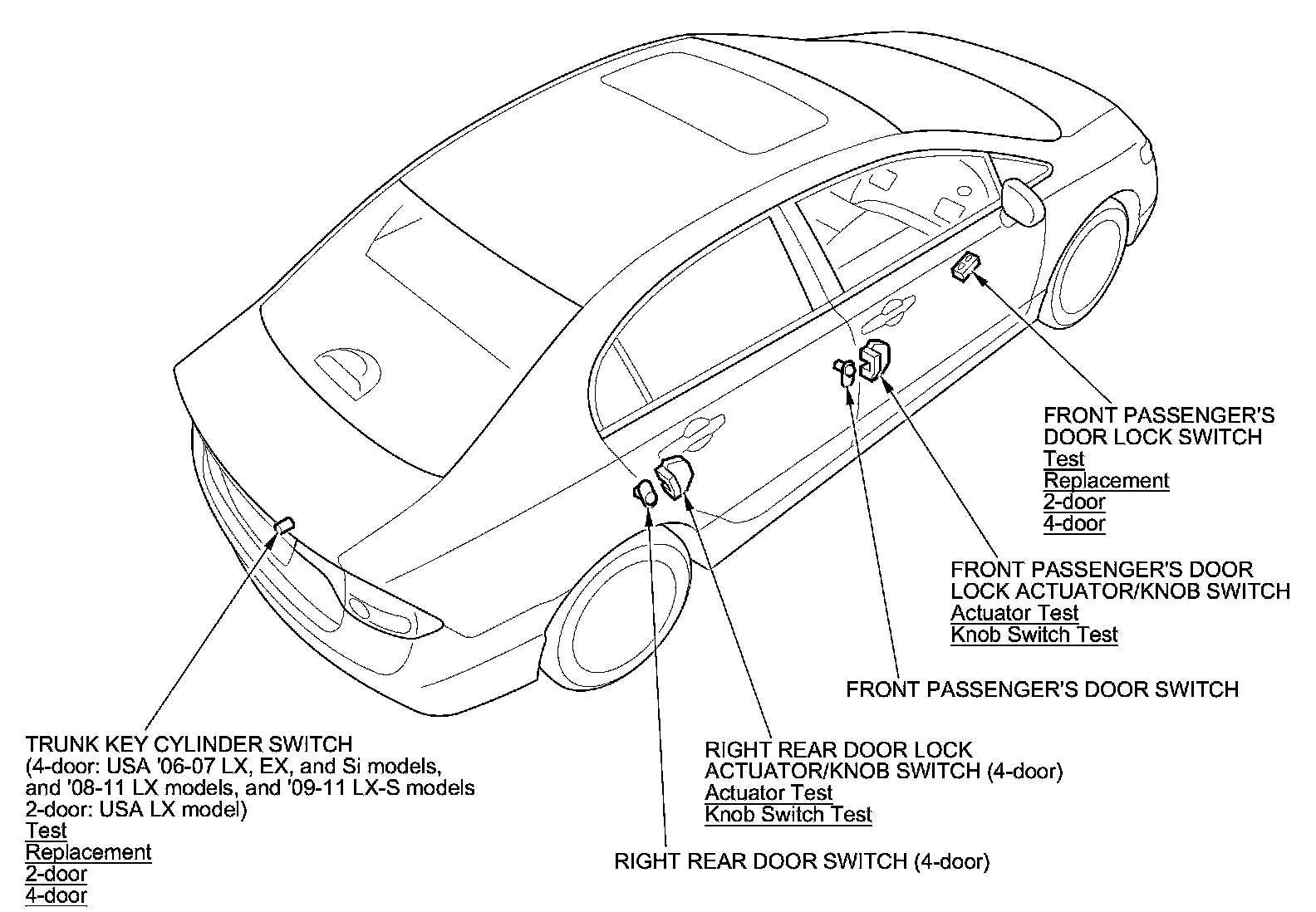

Keyless/Power Door Locks/Security System Component Location Index

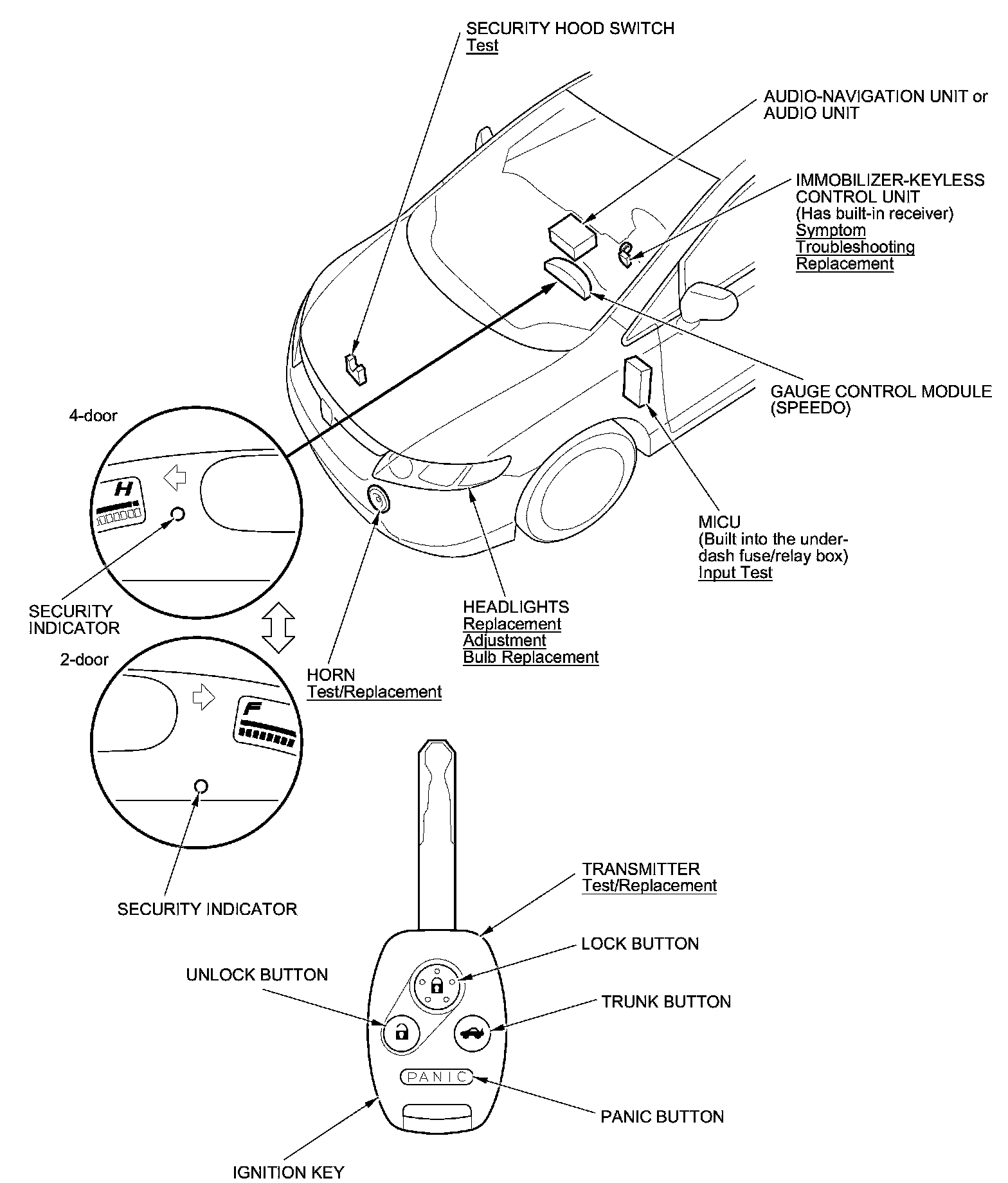

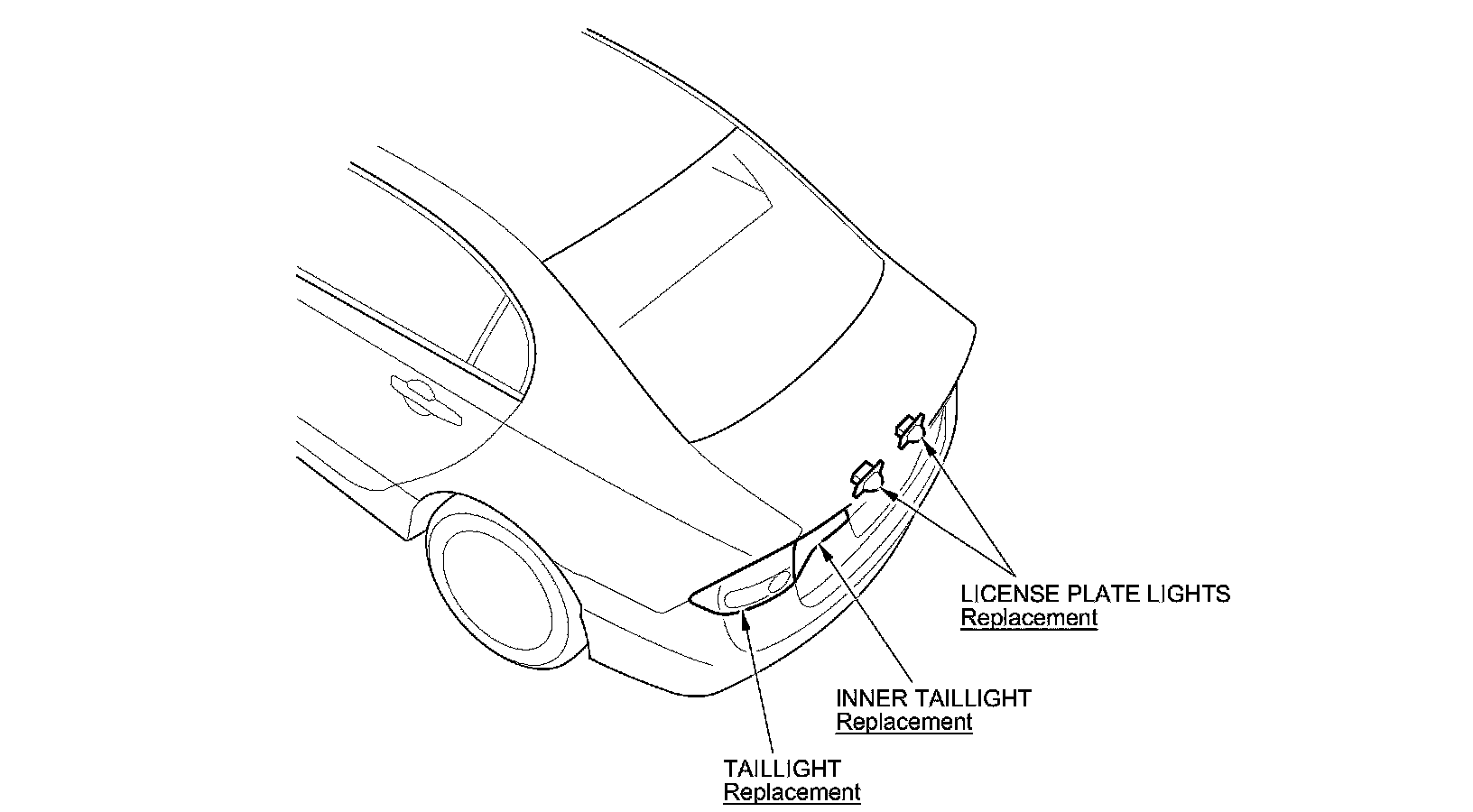

4-door

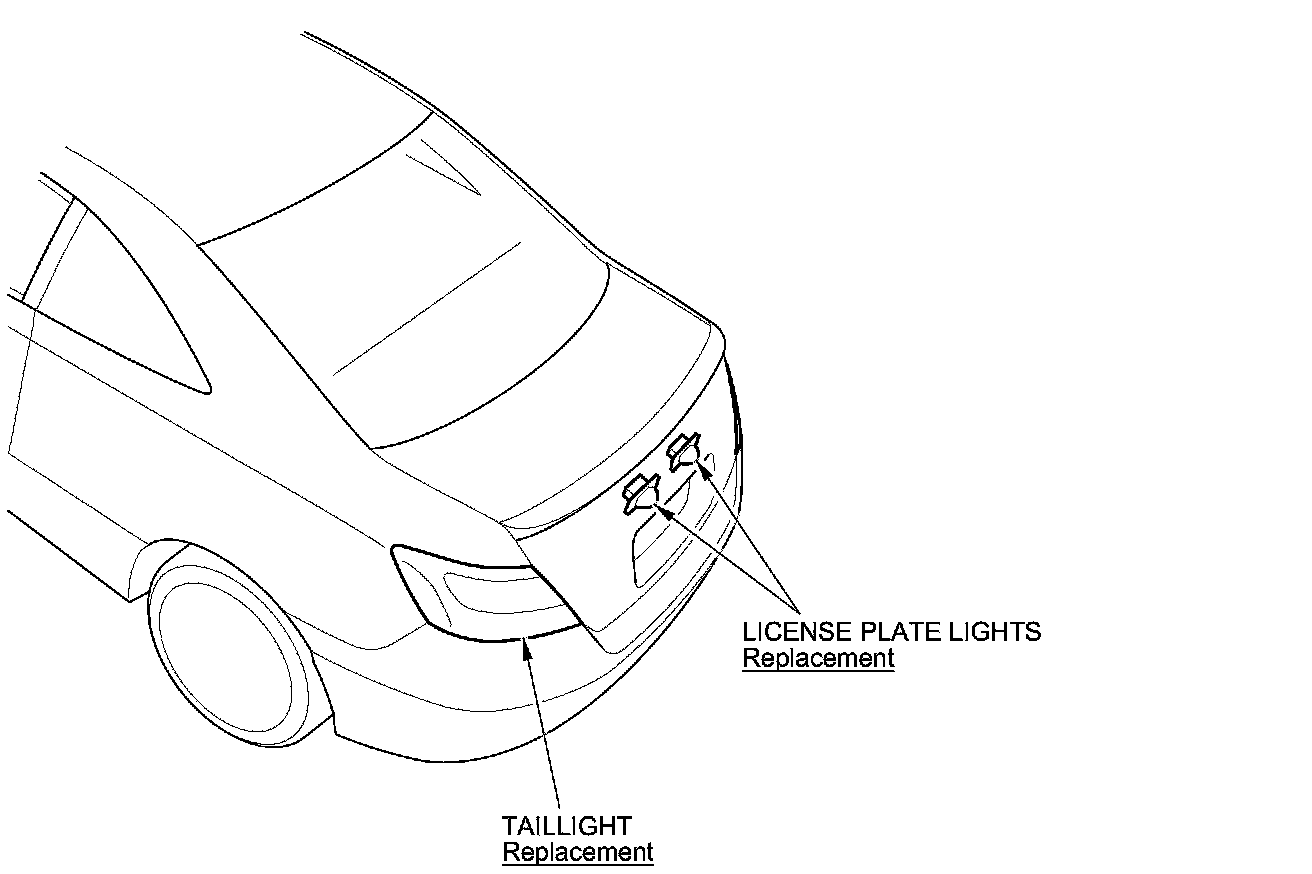

2-door
