Alarm Module: Service and Repair

Immobilizer-Keyless Control Unit Replacement

NOTE: SRS components are located in this area. Review the SRS component locations 4-door SRS Component Location Index (2-Door), 2-door SRS Component Location Index (2-Door), and precautions and procedures Service and Repair before doing repairs or servicing.

1. Remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

2. Remove the steering column covers Steering Column Removal/Installation.

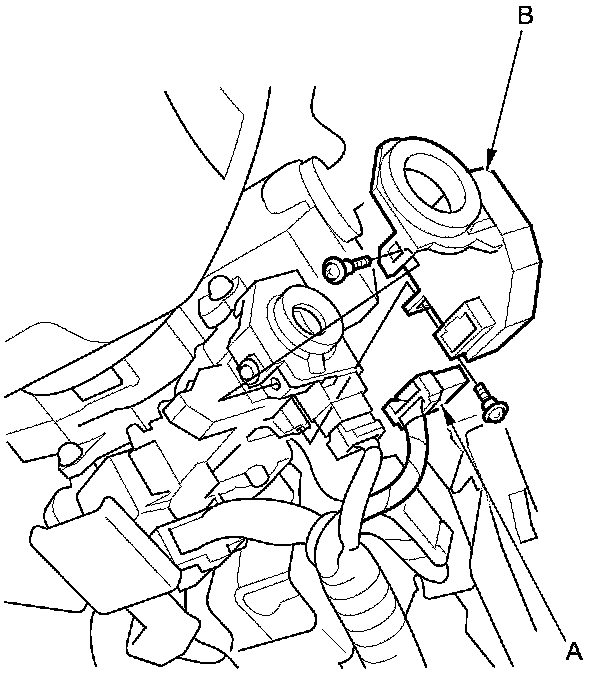

3. Disconnect the 7P connector (A) from the immobilizer-keyless control unit (B).





4. Remove the two screws and the immobilizer-keyless control unit.

5. Install the immobilizer-keyless control unit in the reverse order of removal.

6. After replacement, register the immobilizer-keyless control unit Programming and Relearning, and make sure the immobilizer system works properly.

7. Program all of the customer's key/keyless transmitters Service and Repair.
