Advanced Diagnostics

Advanced Diagnostics - DTC P2271: Secondary Heated Oxygen Sensor (Secondary HO2S (Sensor 2)) Circuit Signal Stuck Rich






General Description

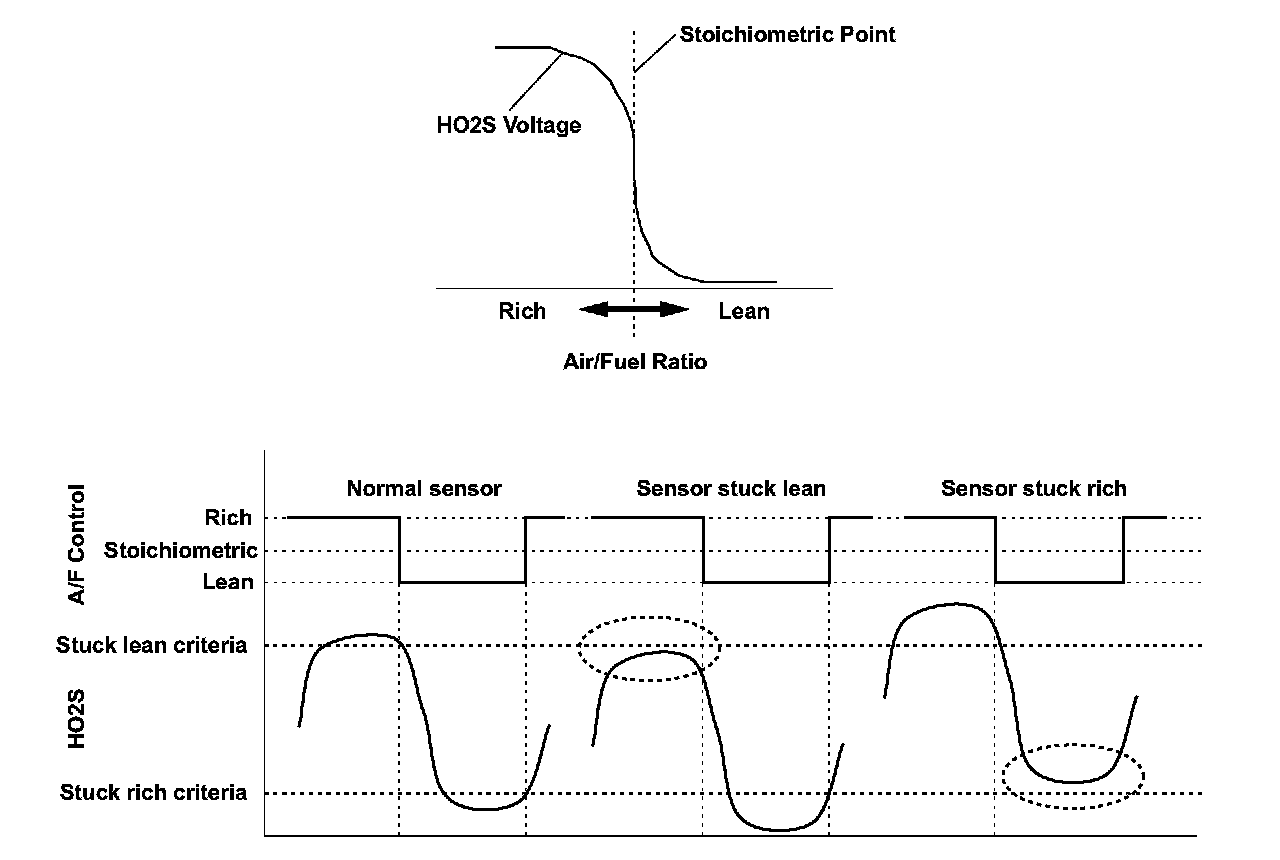

The secondary heated oxygen sensor (secondary HO2S (sensor 2)) detects the oxygen concentration in the exhaust gas downstream of the three way catalyst (TWC). The sensor output voltage characteristics are similar to the air/fuel ratio (A/F) sensor. The oxygen concentration is detected after the TWC during fuel feedback control using the A/F sensor, and it optimizes the fuel feedback control to maximize the effect of the TWC. If, after current is applied to the secondary HO2S heater, the secondary HO2S does not fluctuate and the output is stuck within the specified area, a malfunction is detected and a DTC is stored.

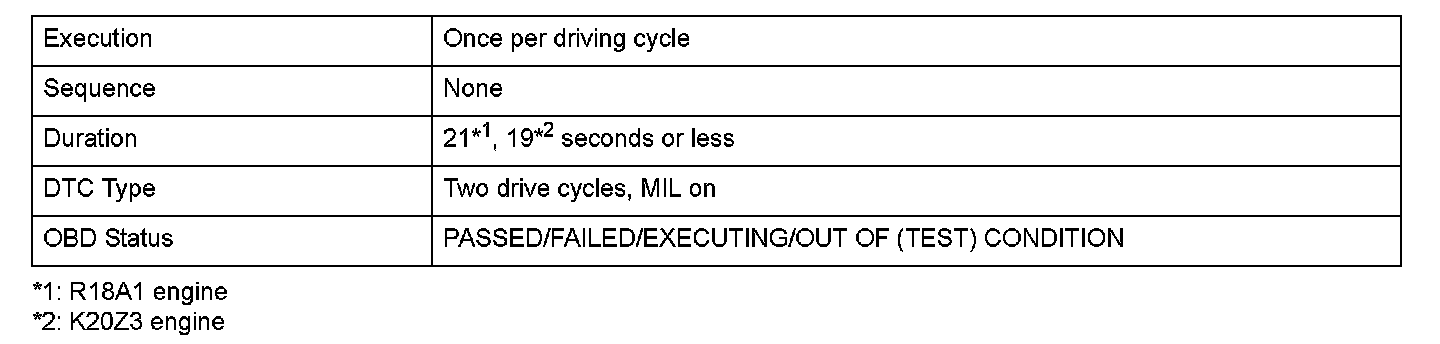

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

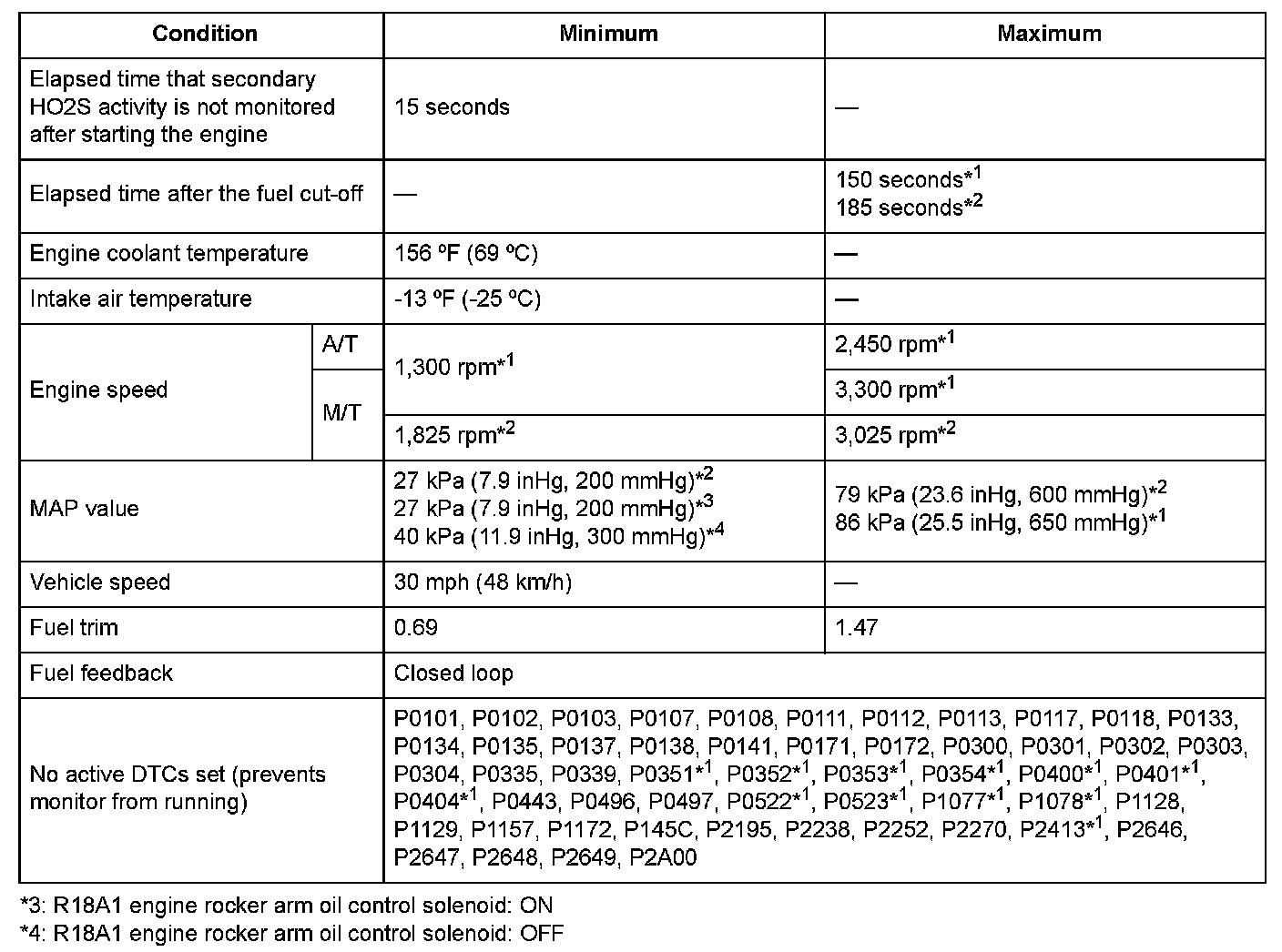

Enable Conditions






Malfunction Threshold
The secondary HO2S (sensor 2) output voltage is 0.30 V or more.

Driving Pattern
1. Start the engine, and let it idle until the radiator fan comes on.
2. Drive the vehicle at a steady speed of 30 mph (48 km/h) or more for at least 21*1, 19*2 seconds.

- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the ECM/PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
