Advanced Diagnostics

Advanced Diagnostics - DTC P2229: Barometric Pressure (BARO) Sensor Circuit High Voltage











General Description

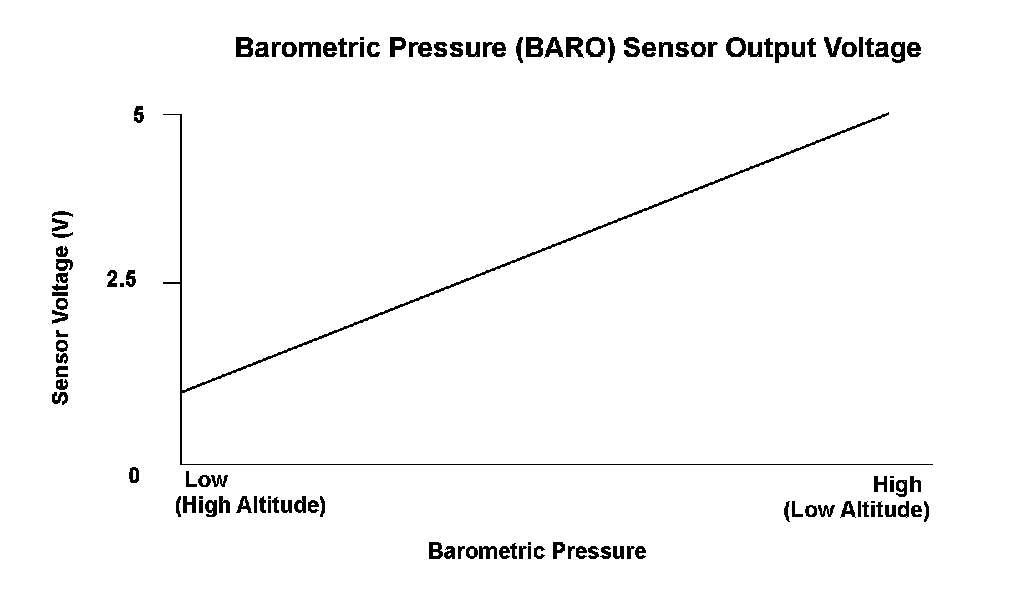

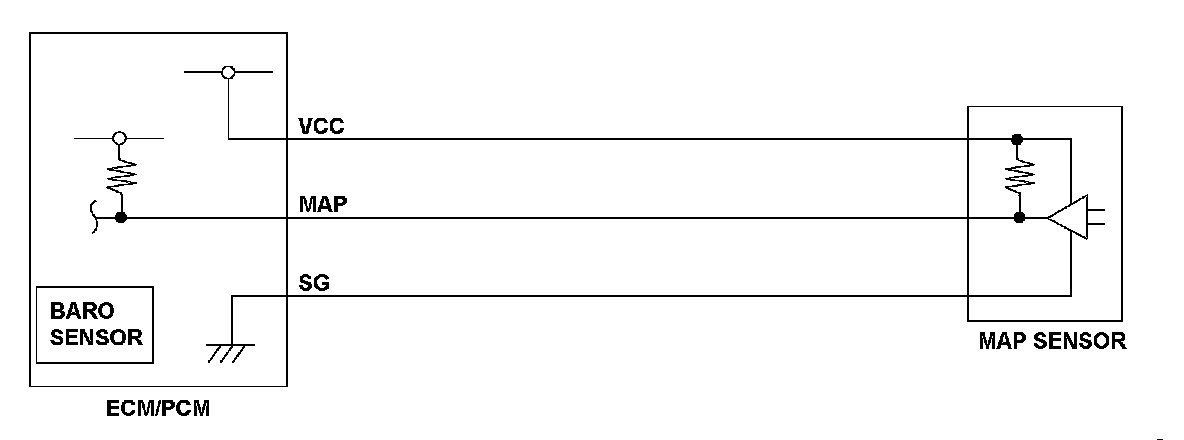

The barometric pressure (BARO) sensor is built into the engine control module (ECM)/powertrain control module (PCM), and it monitors atmospheric pressure. The ECM/PCM estimates appropriate intake airflow from the manifold absolute pressure (MAP) sensor output voltage and the BARO sensor output voltage. If the BARO sensor output voltage is a specified value, the ECM/PCM detects a malfunction and stores a DTC.

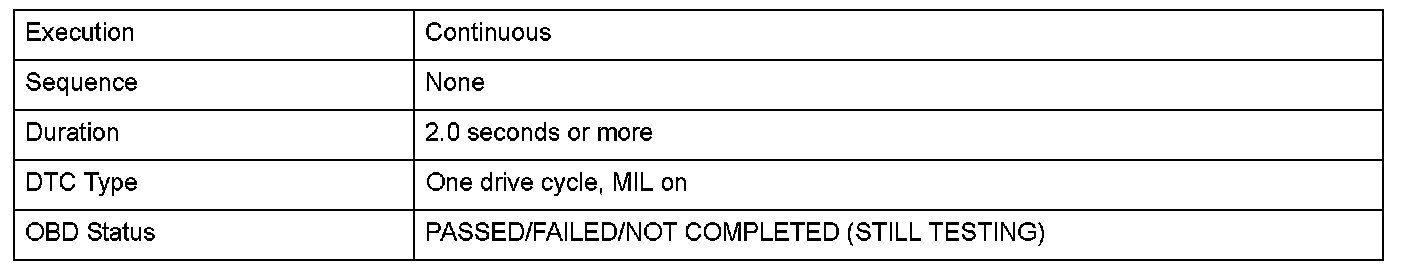

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

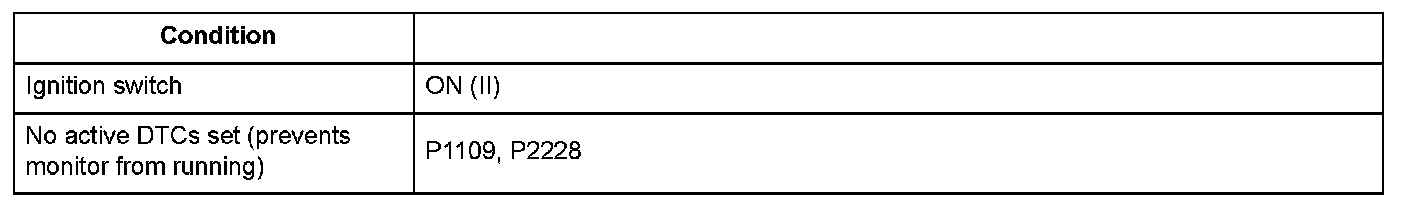

Enable Conditions






Malfunction Threshold
The BARO sensor output voltage is 4.49 V or more for at least 2.0 seconds.

Diagnosis Details

Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the ECM/PCM memory.

Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
