Advanced Diagnostics - DTC P1298: Electrical Load Detector (ELD) Circuit High Voltage






General Description

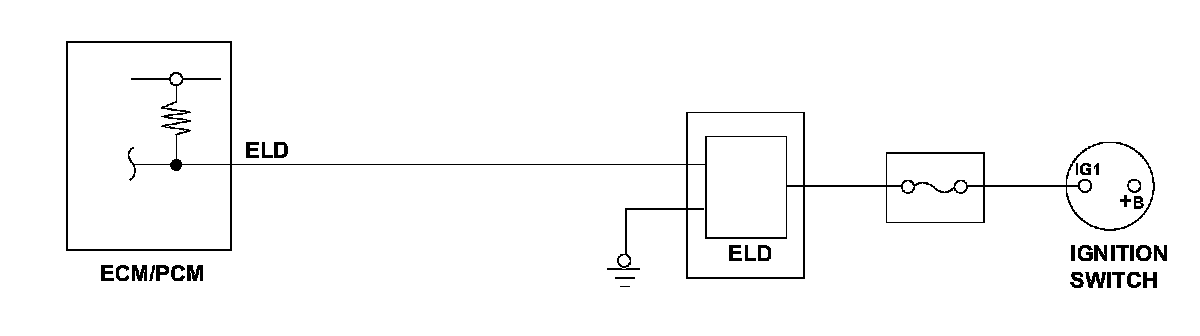

The electrical load detector (ELD) is built into the under-hood fuse/relay box. It monitors the current fed to the ignition switch and sends a signal to the engine control module (ECM)/powertrain control module (PCM). If the ELD output voltage is extremely high, the ECM/PCM detects a malfunction and stores a DTC.

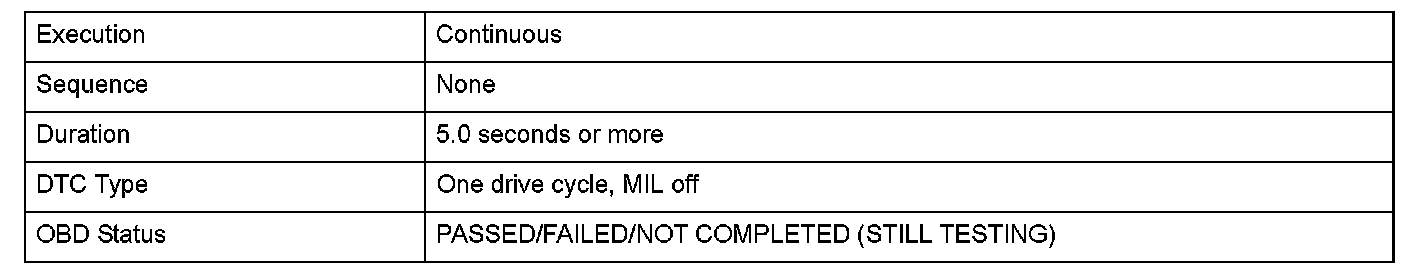

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

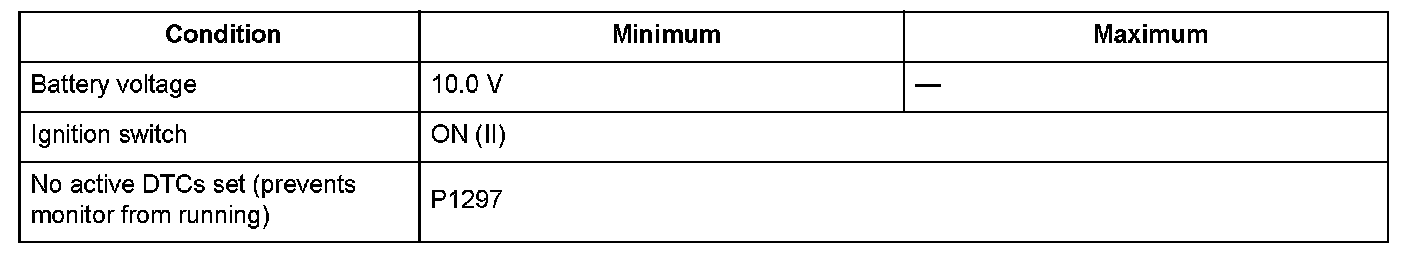

Enable Conditions






Malfunction Threshold
The ELD output voltage is 4.57 V or more for at least 5.0 seconds.

Diagnosis Details

Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC, and the freeze data are stored in the ECM/PCM memory. The MIL does not come on.

Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
