VSA DTC Troubleshooting: 64-12

DTC 64-12:

Steering Angle Sensor Power Circuit Open

1. Turn the ignition switch to ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch to LOCK (0), then turn it to ON (II) again.

4. Check for DTCs with the HDS.

Is DTC 64-12 indicated?

YES -

Go to step 5.

NO -

Intermittent failure, the system is OK at this time. Check for loose terminals between the steering angle sensor 5P connector and the VSA modulator-control unit 37P connector. Refer to intermittent failures troubleshooting.�

5. Turn the ignition switch to LOCK (0).

6. Disconnect the steering angle sensor 5P connector Service and Repair.

7. Disconnect the VSA modulator-control unit 37P connector.

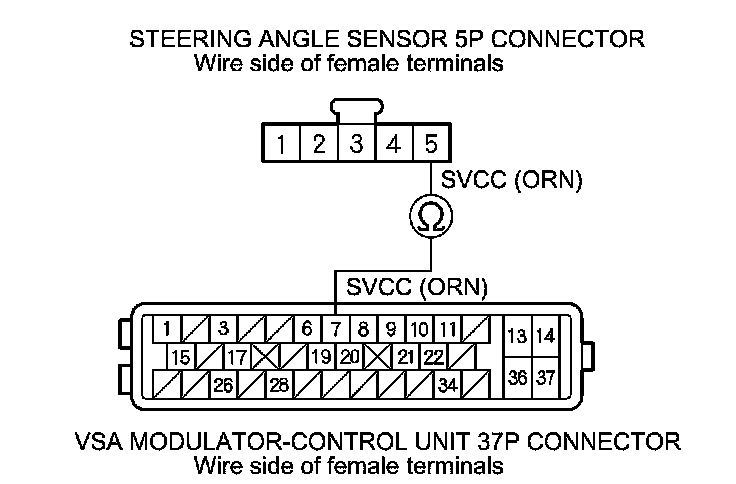

8. Check for continuity between VSA modulator-control unit 37P connector terminal No. 7 and steering angle sensor 5P connector terminal No. 5.





Is there continuity?

YES -

Go to step 9.

NO -

Repair an open in the wire between the steering angle sensor and the VSA modulator-control unit.�

9. Turn the ignition switch to ON (II).

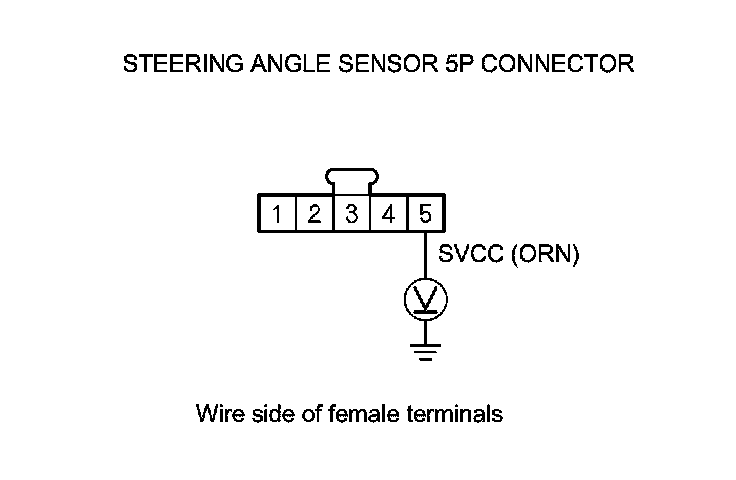

10. Measure the voltage between steering angle sensor 5P connector terminal No. 5 and body ground.





Is there 0.1 V or more?

YES -

Repair a short to power in the wire between the steering angle sensor and the VSA modulator-control unit.�

NO -

Check for loose terminals in the VSA modulator-control unit 37P connector. If necessary, substitute a known-good VSA modulator-control unit Service and Repair, and retest.�
