64-11

VSA DTC Troubleshooting: 64-11

DTC 64-11:

Steering Angle Sensor Power Circuit Short

1. Turn the ignition switch to ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch to LOCK (0), then turn it to ON (II) again.

4. Check for DTCs with the HDS.

Is DTC 64-11 indicated?

YES -

Go to step 5.

NO -

Intermittent failure, the system is OK at this time.�

5. Turn the ignition switch to LOCK (0).

6. Disconnect the steering angle sensor 5P connector Service and Repair.

7. Disconnect the VSA modulator-control unit 37P connector.

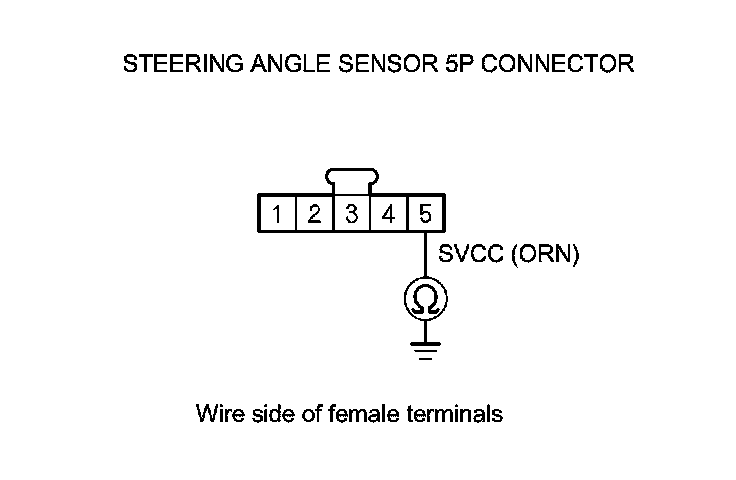

8. Check for continuity between steering angle sensor 5P connector terminal No. 5 and body ground.





Is there continuity?

YES -

Repair a short to body ground in the wire between the steering angle sensor and the VSA modulator-control unit.�

NO -

Replace the VSA modulator-control unit Service and Repair.�
