61-04

EPS DTC Troubleshooting: 61-04

DTC 61-04:

Motor Harness Malfunction

1. Turn the ignition switch to ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch to LOCK (0).

4. Start the engine.

5. Turn the steering wheel to the right or left, and wait 10 seconds or more.

6. Check for DTCs with the HDS.

Is DTC 61-04 indicated?

YES -

Go to step 7.

NO -

Troubleshoot the indicated DTC. If there are no DTCs, the system is OK at this time.�

7. Turn the ignition switch to LOCK (0).

8. Disconnect EPS control unit connector B (2P) and connector C (2P).

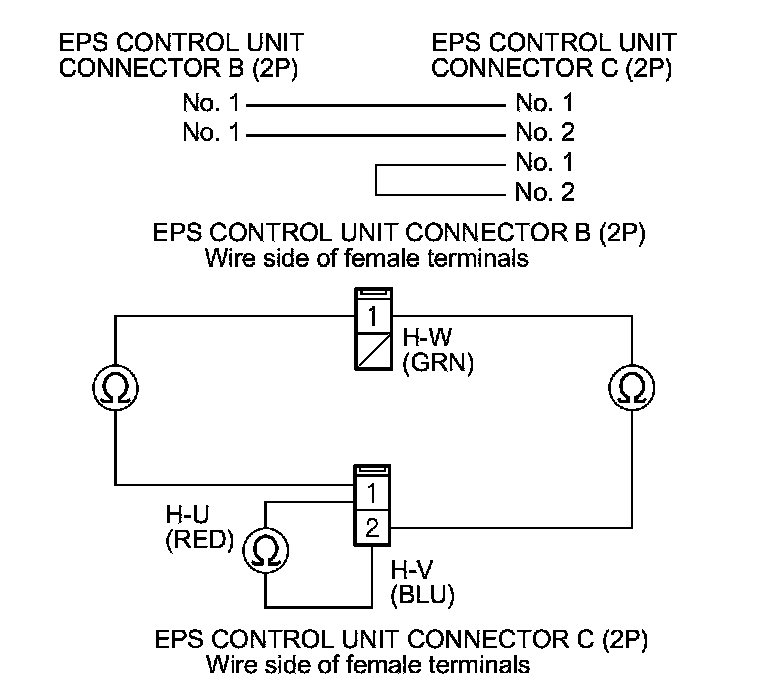

9. Check for continuity between the following terminals of EPS control unit connector B (2P) and connector C (2P).





Is there continuity?

YES -

Go to step 10.

NO -

Go to step 13.

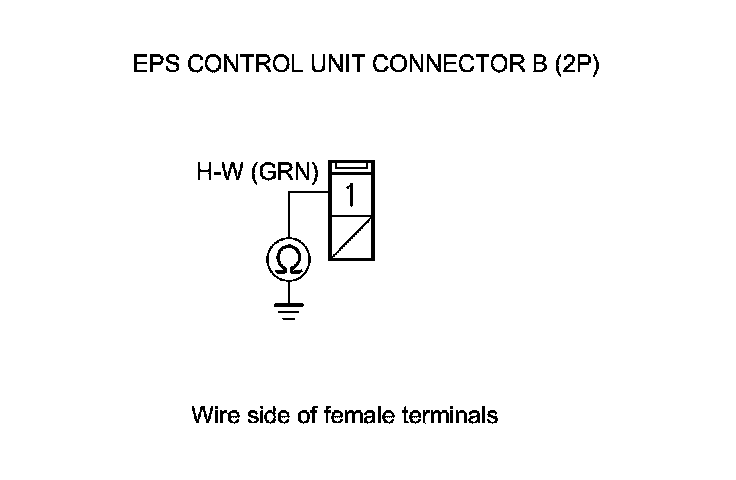

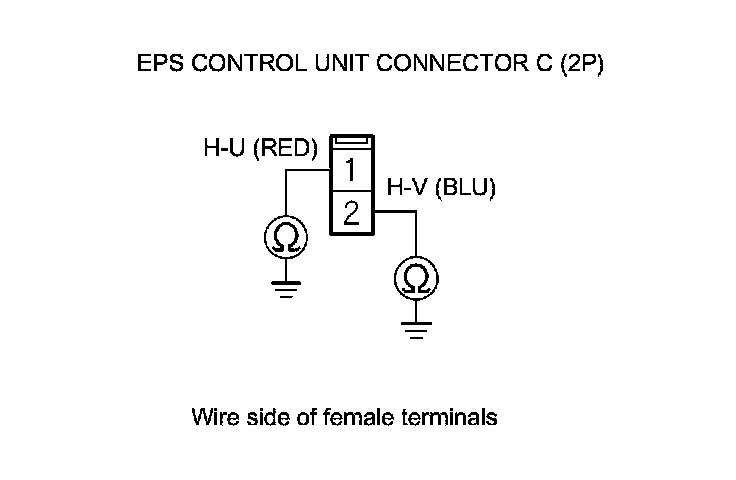

10. Check for continuity between body ground and EPS control unit connector B (2P) terminal No. 1, connector C (2P) terminal No. 1, and connector C (2P) terminal No. 2 individually.









Is there continuity?

YES -

Go to step 11.

NO -

Check for loose terminals in the EPS control unit connectors, and repair if necessary. If no poor connections are found, replace the EPS control unit Service and Repair.�

11. Disconnect the EPS motor 1P connector and the EPS motor 2P connector.

12. Check for continuity between body ground and EPS control unit connector B (2P) terminal No. 1, connector C (2P) terminal No. 1, and connector C (2P) terminal No. 2 individually.









Is there continuity?

YES -

Repair a short to body ground in the wire between the EPS control unit and the EPS motor.�

NO -

Replace the EPS motor Service and Repair.�

13. Disconnect the EPS motor 1P connector and the EPS motor 2P connector.

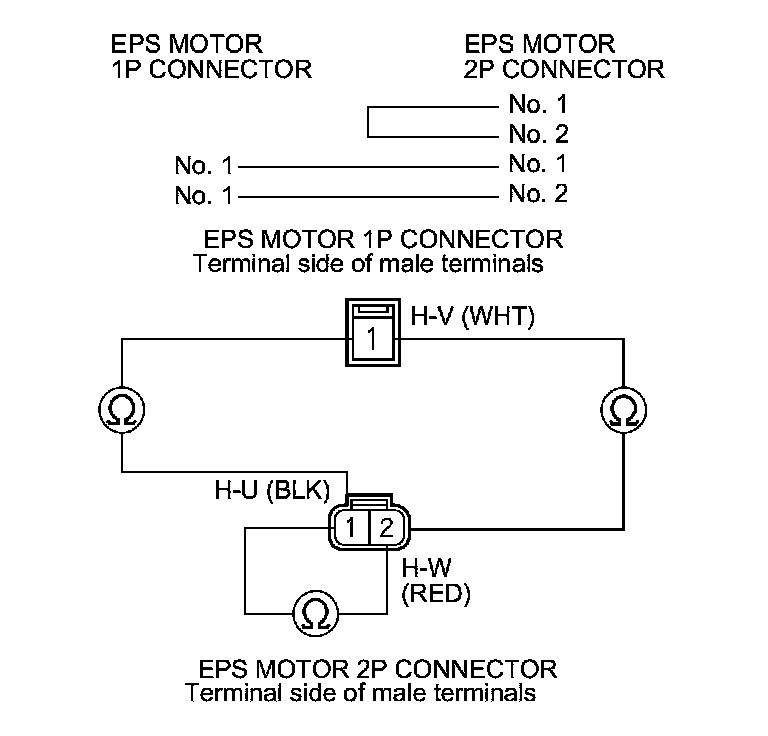

14. On the EPS motor side, check for continuity between the following terminals of the EPS motor 1P and the EPS motor 2P connector.





Is there continuity?

YES -

Repair an open in the wire between the EPS control unit and the EPS motor.�

NO -

Replace the EPS motor Service and Repair.�
