VSA System

VSA DTC Troubleshooting: 52-12

DTC 52-12:

Motor Stuck OFF

1. Turn the ignition switch to ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch to LOCK (0), then turn it to ON (II) again.

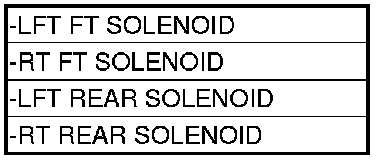

4. Operate any one of the four solenoids, as listed, in the VSA FUNCTION TEST five times with the HDS.





5. Check for DTCs with the HDS.

Is DTC 52-12 indicated?

YES -

Replace the VSA modulator-control unit Service and Repair.�

NO -

Intermittent failure, the system is OK at this time.�
