B1780

DTC Troubleshooting: B1780

DTC B1780:

HandsFreeLink steering wheel switch line short

NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.

1. Connect the HDS to the DLC Reading and Clearing Diagnostic Trouble Codes.

2. Clear the DTCs with the HDS.

3. Turn the ignition switch to LOCK (0), then start the vehicle, and turn the steering wheel back and forth several times.

4. Check for DTCs with the HDS.

Is DTC B1780 indicated?

YES -

Go to step 5.

NO -

Intermittent failure, the system is OK at this time.�

5. Turn the ignition switch to LOCK (0).

6. Do the HFL Switch Test HFL Switch Test (With Navigation).

Is the switch OK?

YES -

Go to step 7.

NO -

Replace the voice control switch Service and Repair.�

7. Disconnect the HandsFreeLink control unit 28P connector.

8. Disconnect the voice control switch 5P connector.

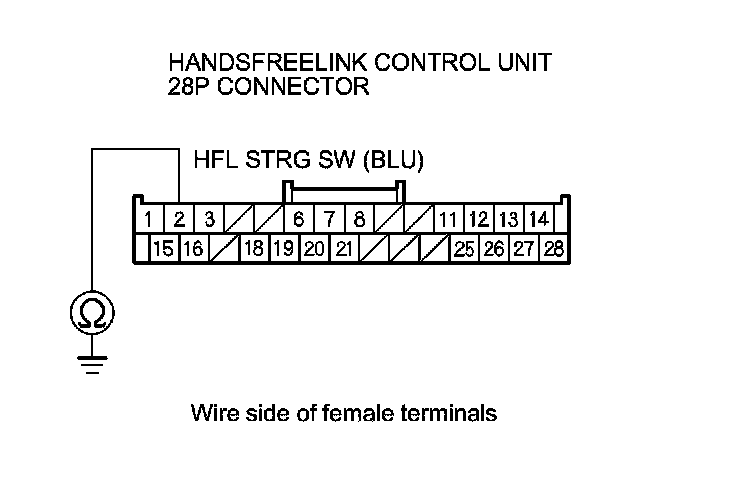

9. Check for continuity between HandsFreeLink control unit 28P connector terminal No. 2 and body ground.





Is there continuity?

YES -

Repair a short to body ground in the wire between the HandsFreeLink control unit and the voice control switch.�

NO -

Replace the HandsFreeLink control unit Service and Repair.�
