Wipers/Washers MICU Input Test

Wipers/Washers MICU Input Test

NOTE: Before testing the wiper/washer system, troubleshoot the system using B-CAN System Diagnosis Test Mode A, Troubleshooting - B-CAN System Diagnosis Test Mode A and check the No. 10 (7.5 A) and No. 38 (30 A) fuses in the under-dash fuse/relay box.

1. Turn the ignition switch to LOCK (0).

2. Disconnect under-dash fuse/relay box connectors E, F, S, and T.
NOTE: All connector views are shown from wire side of female terminals.

3. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.

- If the terminals look OK, go to step 4.

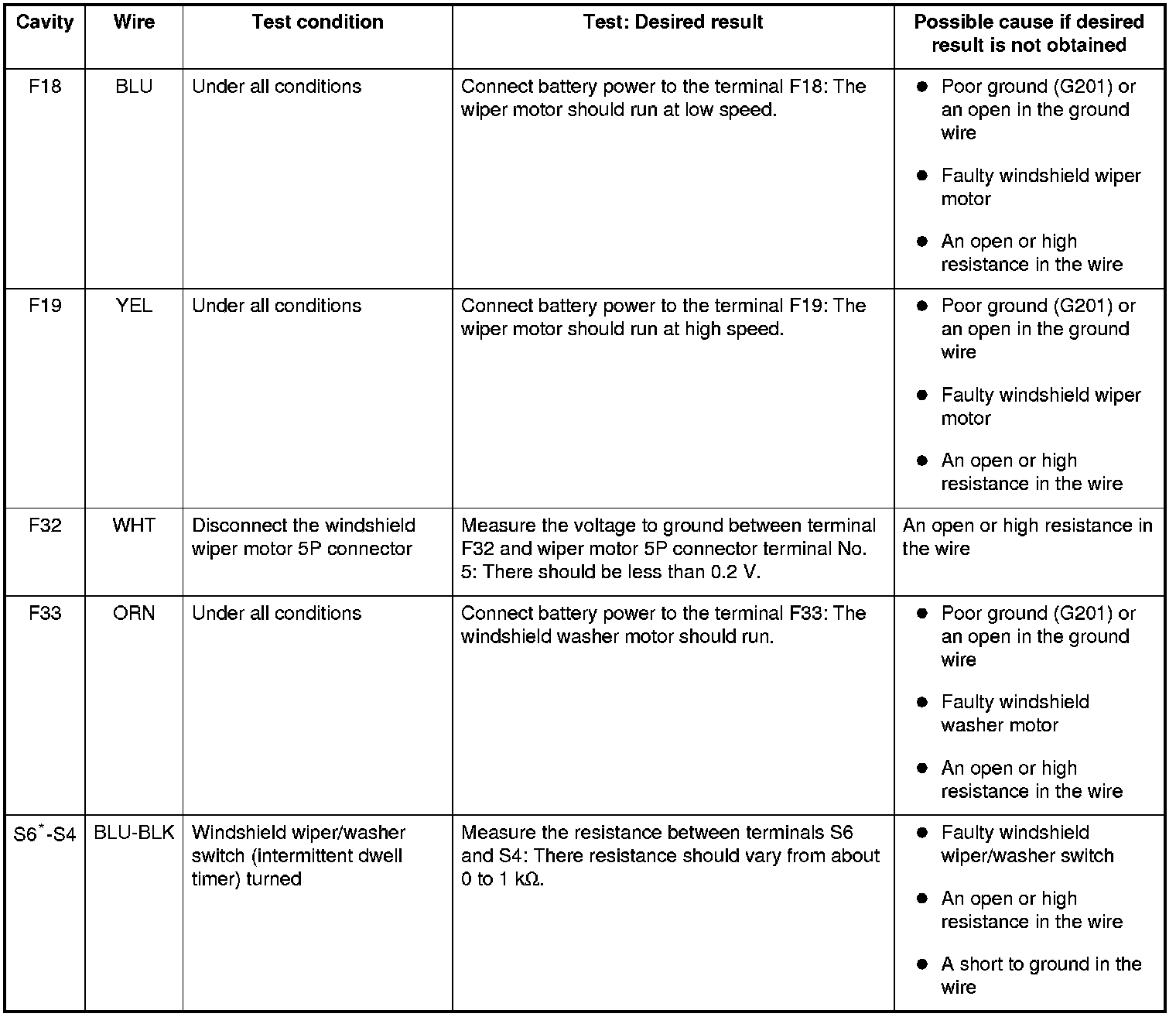

4. With the connectors still disconnected, do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 5.





*: USA EX, EX-L, and Si models and Canada except '09-10 DX and DX-G models

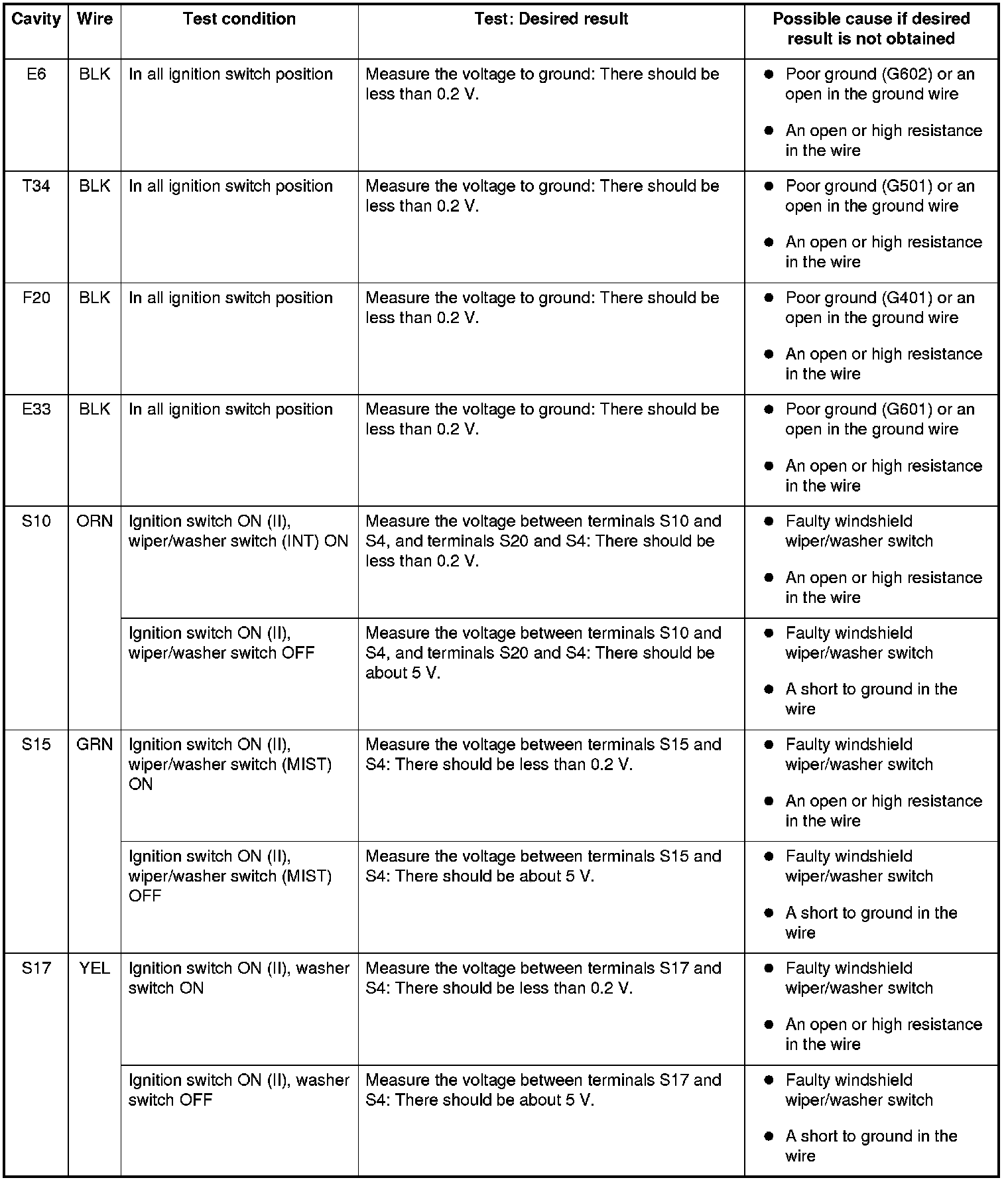

5. Reconnect the connectors to the under-dash fuse/relay box, and do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, the MICU must be faulty; replace the under-dash fuse/relay box.
