Power Windows System Description

Power Windows System Description

Auto Reverse Operation (Except DX and 2-door DX-G models)

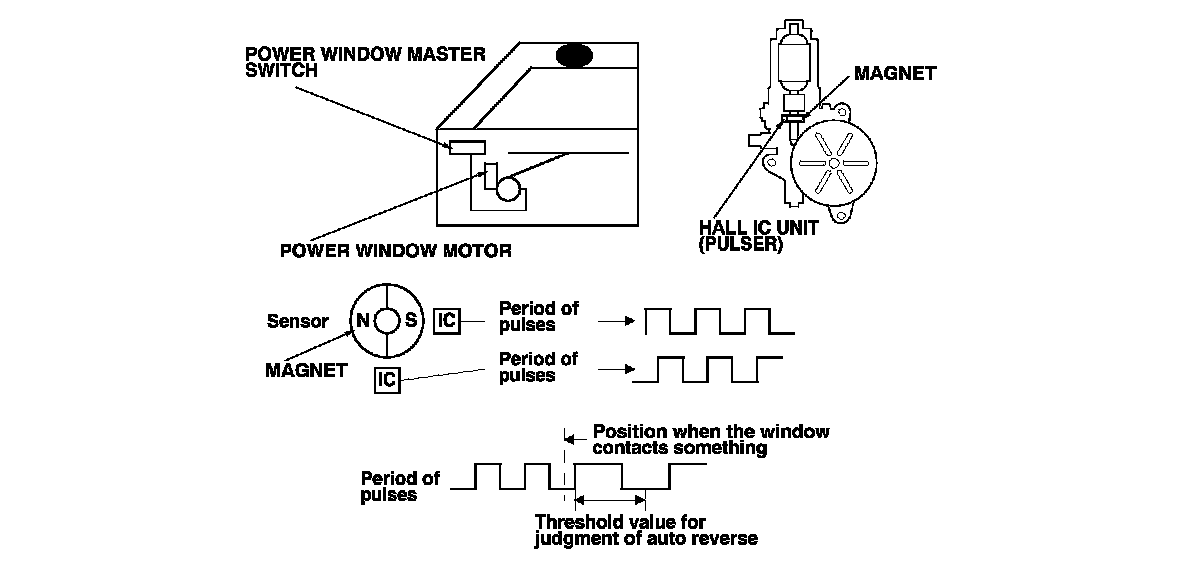

The system is composed of the power window master switch and the driver's power window motor.

The driver's power window motor incorporates a Hall IC unit (pulser) which generates pulses during the motor's operation and sends the pulses to the driver's power window control unit. As soon as the power window control unit detects a change in pulse frequency from the Hall IC unit (pulser), the driver's power window control unit makes the power window motor stop and reverse. If the window is more than halfway closed, it will reverse to the half open position. If the window is less than halfway closed, it will stop and reverse about 2 inches. This is to prevent pinching an obstacle during auto-up operation. The auto reverse function does not work when the power window master switch is held in the up position.
