M/T Countershaft Disassembly

M/T Countershaft Disassembly

NOTE: Refer to the Exploded View in the Countershaft Reassembly, as needed, when removing components pressed on to the countershaft. M/T Countershaft Reassembly

1. Securely clamp the countershaft assembly in a bench vise with wood blocks.

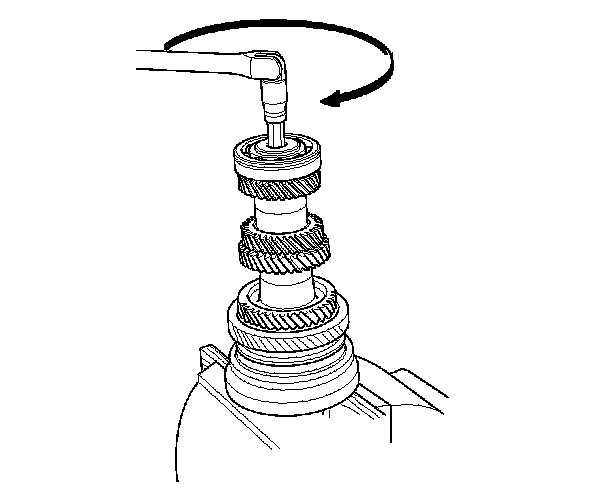

2. Remove the special bolt (left-hand threads).

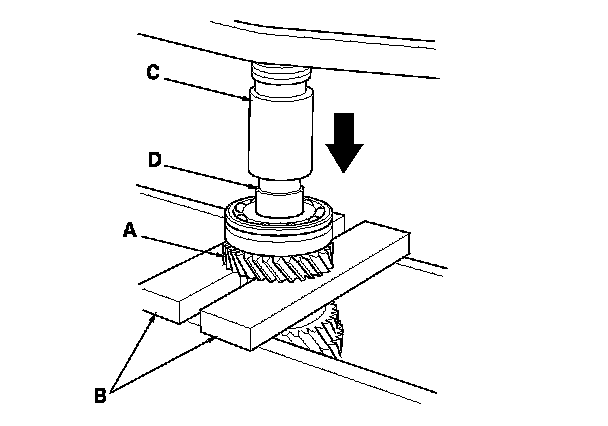

3. Support 6th gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft out of the ball bearing and 6th gear.

4. Remove the 35 mm shim.

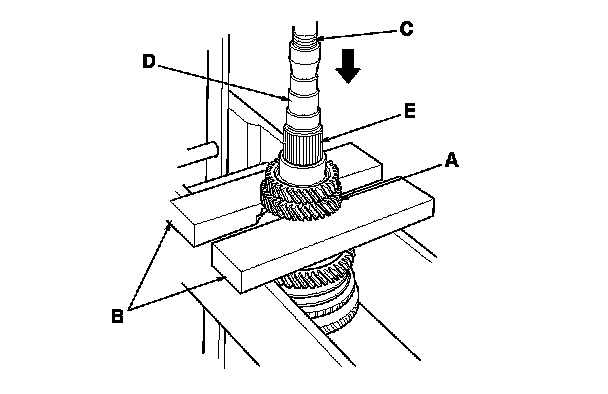

5. Support 4th gear (A) on steel blocks (B), then use the press (C) and an attachment (D) to press the countershaft (E) out of 4th gear and 5th gear.

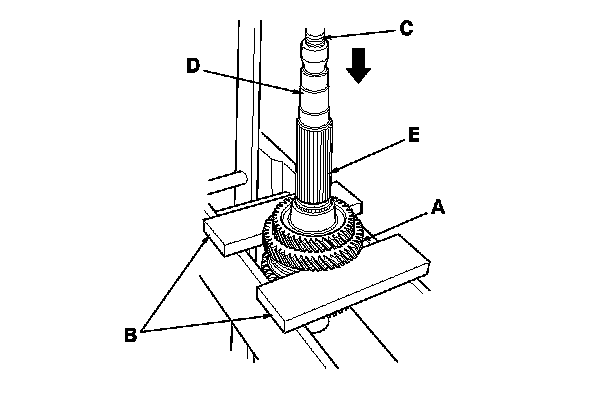

6. Support 2nd gear (A) on steel blocks (B), then use the press (C) and an attachment (D) to press the countershaft (E) out of 2nd gear and 3rd gear.
