M/T Change Lever Clearance Inspection (6M/T)

M/T Change Lever Clearance Inspection

1. Measure the clearance between the change lever (A) and the select lever (B) with a feeler gauge (C). If the clearance exceeds the service limit, go to step 2.

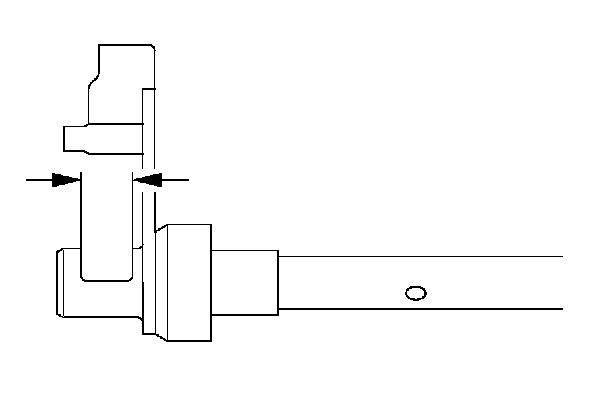

2. Measure the groove width of the change lever.
- If the groove width is not within the standard, replace the shift lever.

- If the groove width is within the standard, replace the select lever.
