Driveshaft Dynamic Damper Replacement




Driveshaft Dynamic Damper Replacement

1. Remove the inboard joint and the inboard joint boot. Driveshaft Disassembly

2. Remove the dynamic damper band. Driveshaft Disassembly

3. Remove the dynamic damper.

4. Install a new dynamic damper.
NOTE: Be careful not to swap the dynamic dampers. Check the type of the dynamic damper by its shape.

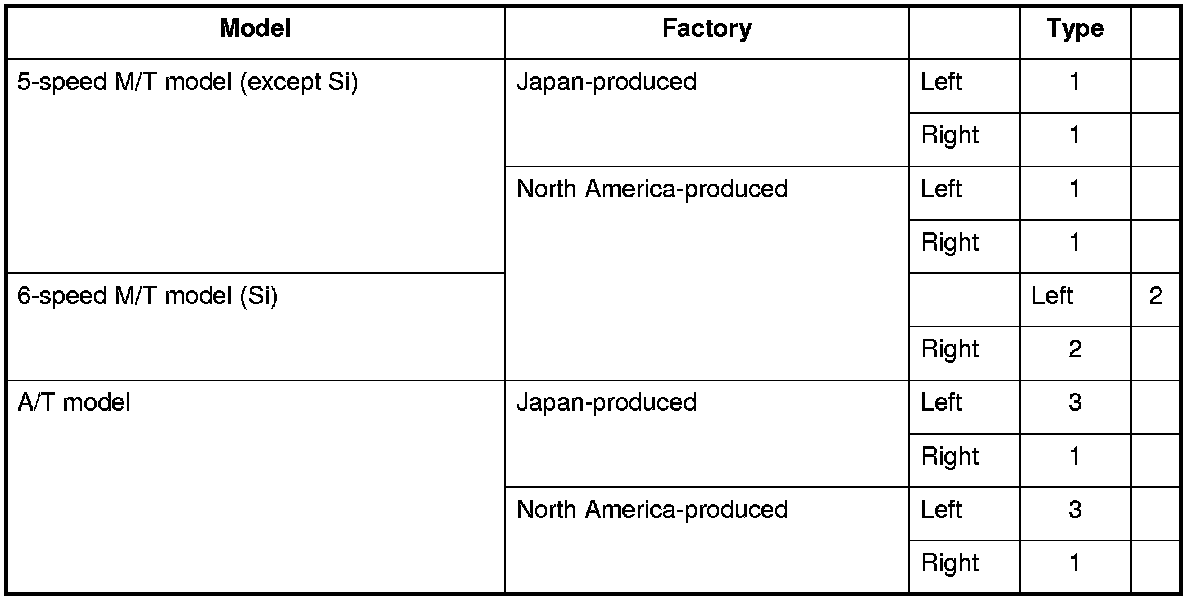

Dynamic Damper Type

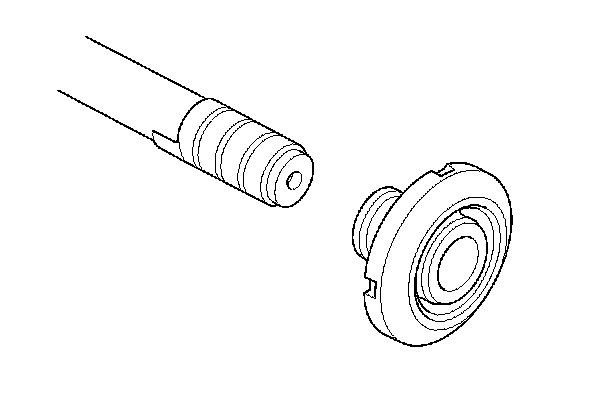

Dynamic damper type 1

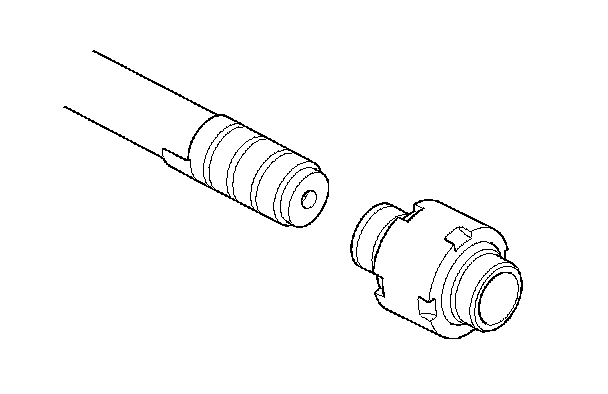

Dynamic damper type 2

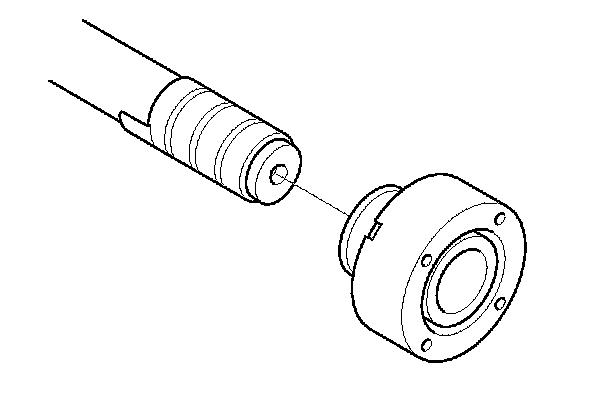

Dynamic damper type 3





5. Adjust the specified distance (A) between the outboard joint side and the dynamic damper edge.
NOTE: Check the type of the dynamic damper by its shape.

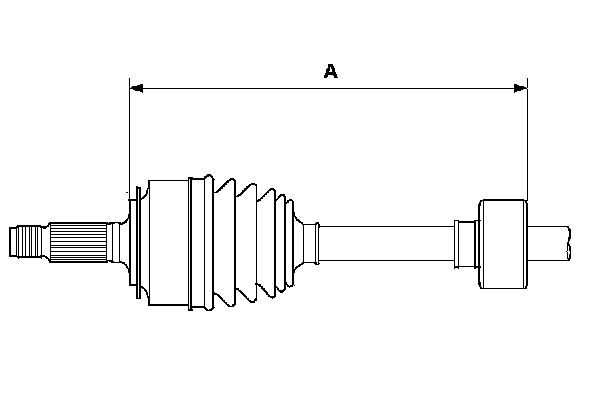

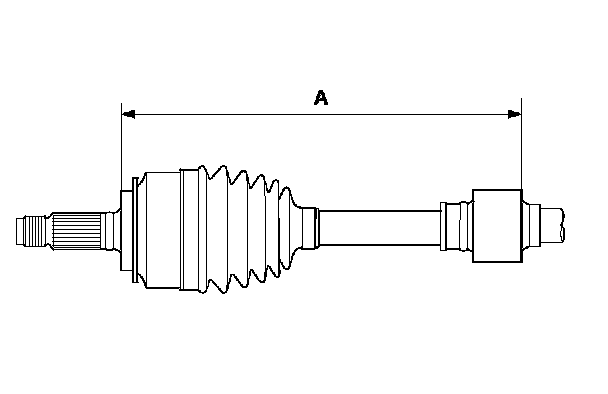

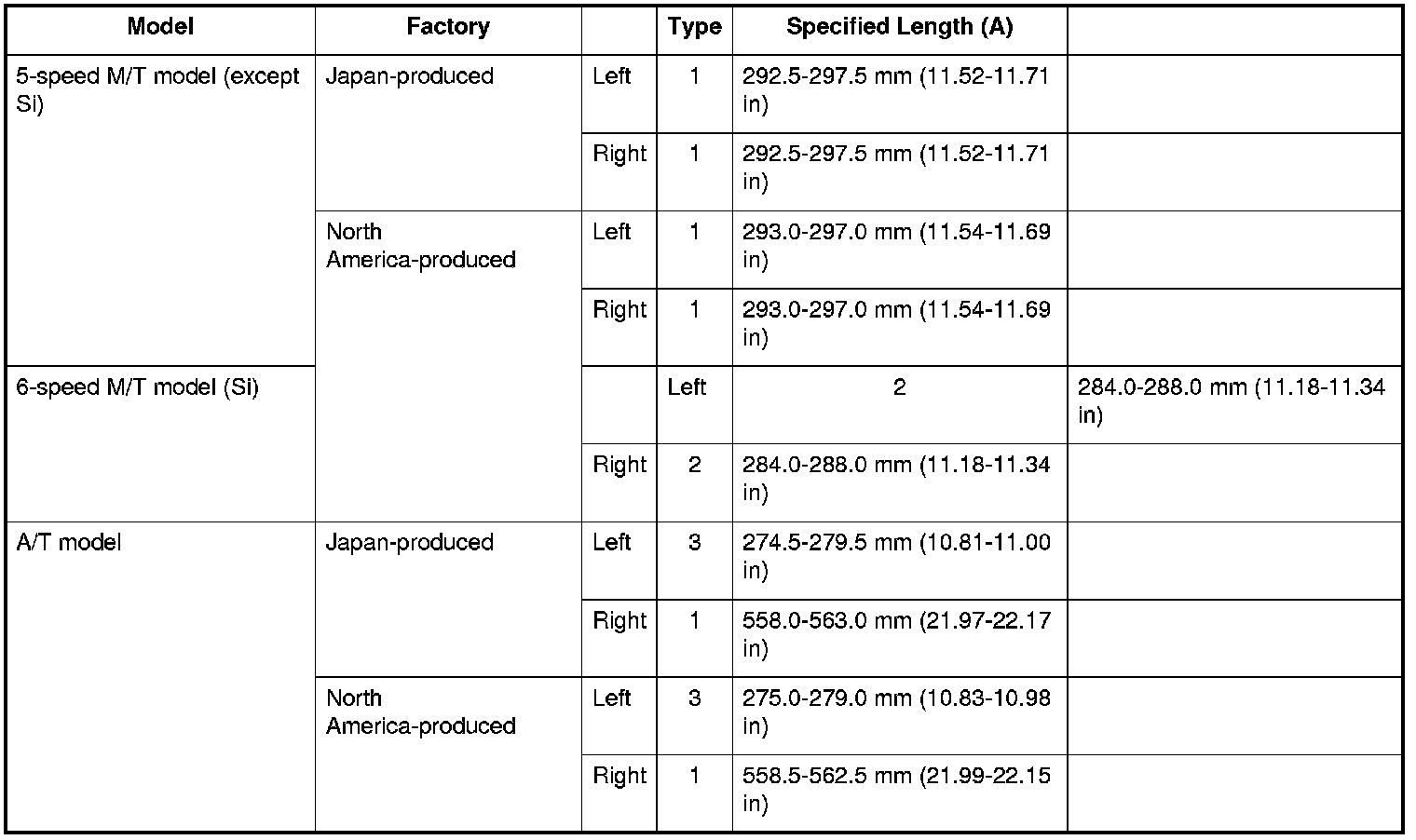

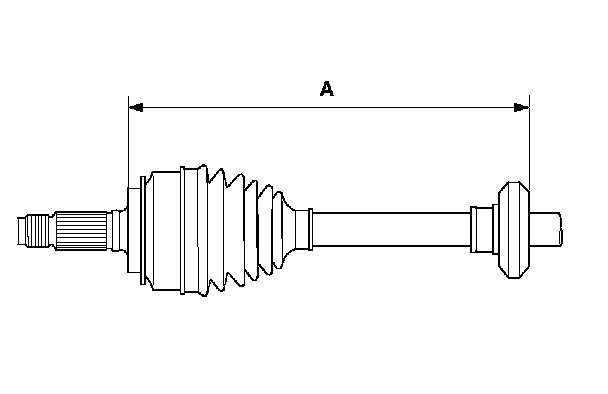

Dynamic Damper Position





6. Install a new dynamic damper band. Driveshaft Reassembly

7. Install the inboard joint. Driveshaft Reassembly

Dynamic damper type 1





Dynamic damper type 2





Dynamic damper type 3
