Intermediate Shaft Reassembly

Intermediate Shaft Reassembly

Exploded View 6-speed M/T model (Si)





Special Tools Required

- Oil seal driver, 64 mm 07GAD-PH70201
- Support base attachment 07JAF-SH20400
- Attachment, 52 x 55 mm 07746-0010400
- Attachment, 35 mm I.D. 07746-0030400
- Driver handle, 15 x 135L 07749-0010000
- Support base 07965-SD90100
NOTE: Refer to the Exploded View, as needed, during this procedure.

6-speed M/T Model (Si)

1. Clean the disassembled parts with solvent, and dry them with compressed air.
NOTE: Do not wash the rubber parts with solvent.

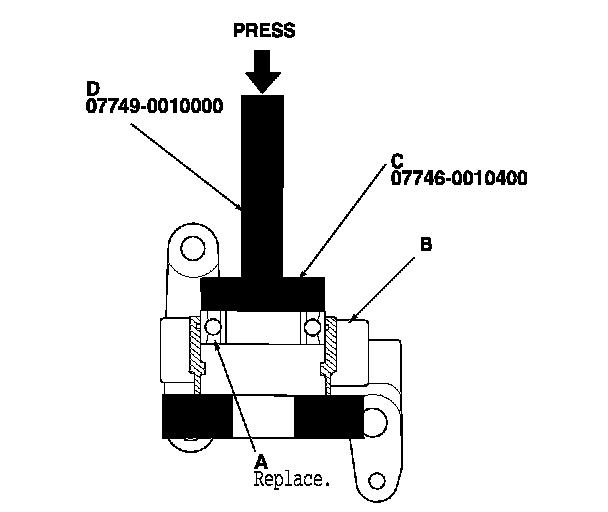

2. Press a new intermediate shaft bearing (A) into the bearing support (B) using the 52 x 55 mm attachment (C), the 15 x 135L driver handle (D), and a press.






3. Seat the internal snap ring (A) into the groove of the bearing support (B).

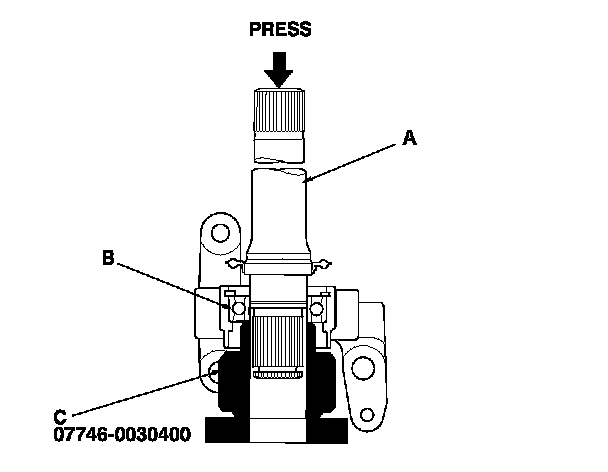

4. Press the intermediate shaft (A) into the shaft bearing (B) using the 35 mm attachment (C) and the press.

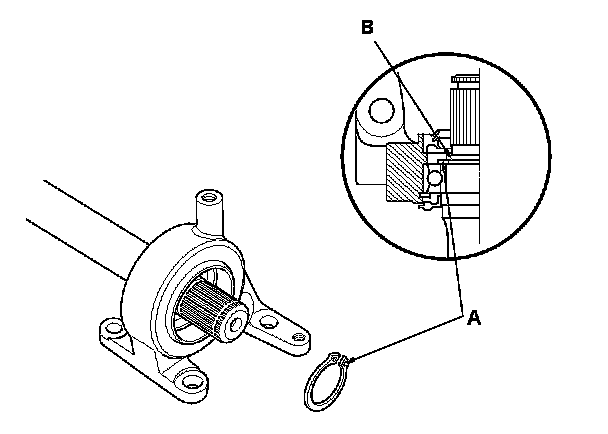

5. Install the external snap ring (A) into the groove (B) of the intermediate shaft.

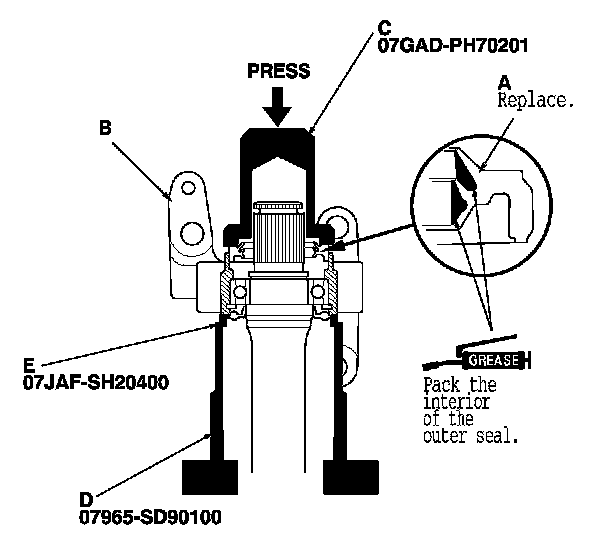

6. Install a new outer seal (A) into the bearing support (B) using the 64 mm oil seal driver (C), the support base (D), the support base attachment (E),and the press.
