Intermediate Shaft Disassembly

Intermediate Shaft Disassembly

Special Tools Required

- Support base attachment 07JAF-SH20400
- Oil seal driver, 44.5 mm 07947-SB00100
- Support base 07965-SD90100

6-speed M/T Model (Si)

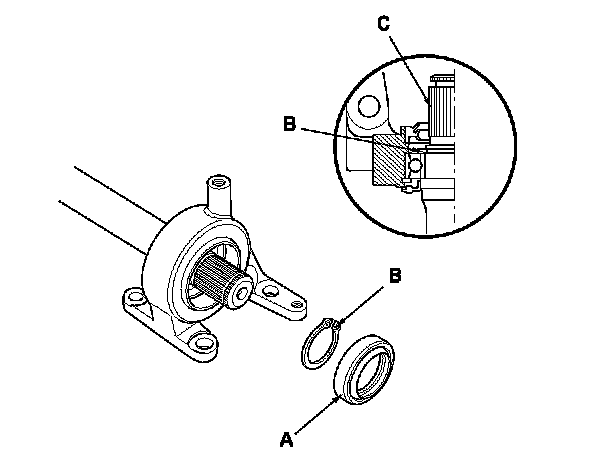

1. Remove the outer seal (A) and the external snap ring (B) from the intermediate shaft (C).

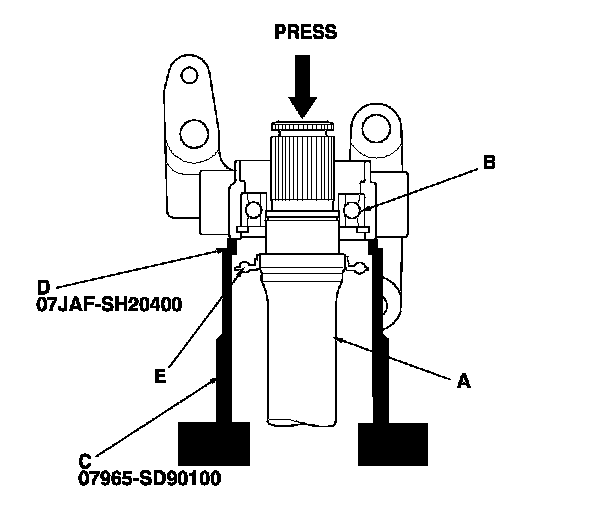

2. Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using the support base (C), the support base attachment (D), and a press. Be careful not to damage the bearing support ring (E) on the intermediate shaft during disassembly.

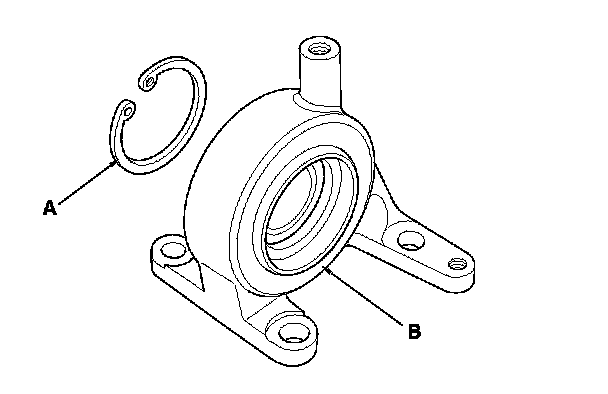

3. Remove the internal snap ring (A) from the bearing support (B).

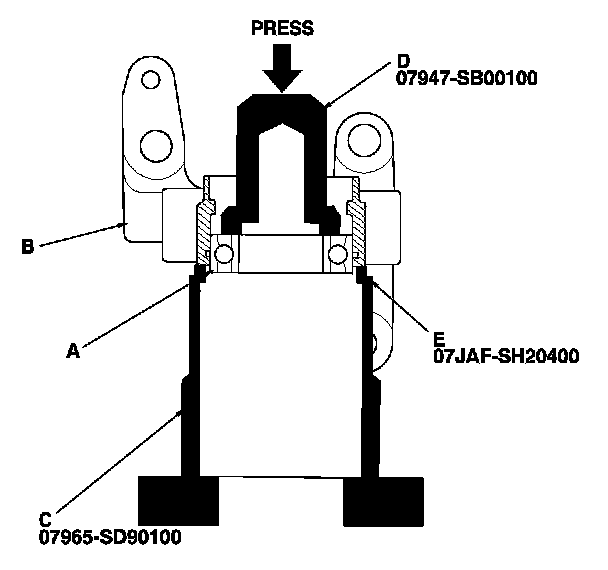

4. Press the intermediate shaft bearing (A) out of the bearing support (B) using the support base (C), the 44.5 mm oil seal driver (D), the support base attachment (E), and the press.
