Clutch Pedal Position Switch Test

Clutch Pedal Position Switch Test

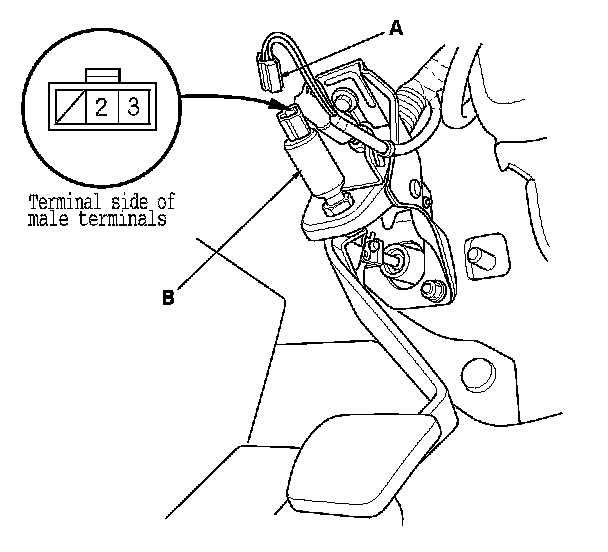

1. Disconnect the clutch pedal position switch connector (A).

2. Remove the clutch pedal position switch (B). Clutch Pedal Position Switch Replacement

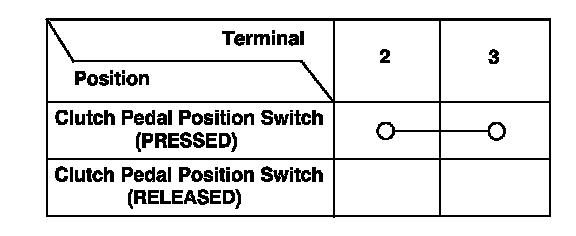

3. Check for continuity between the terminals according to the table.
- If the continuity is not as specified, replace the clutch pedal position switch. Clutch Pedal Position Switch Replacement

- If OK, install the clutch pedal position switch, and adjust the pedal height. Adjustments
