Clutch Interlock Switch Replacement

Clutch Interlock Switch Replacement

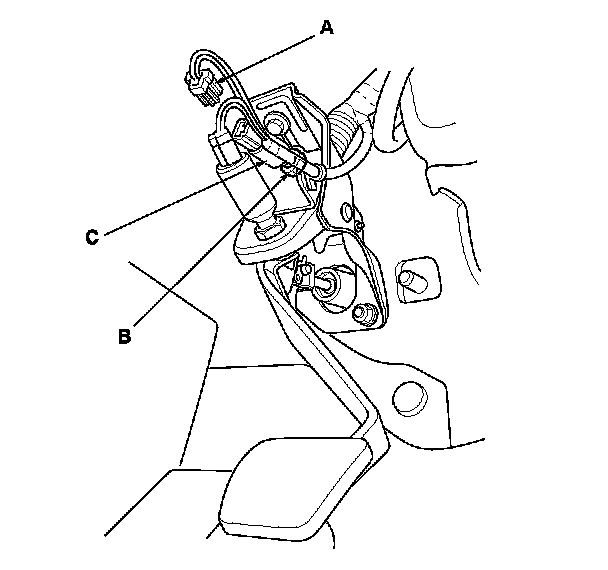

1. Disconnect the clutch interlock switch connector (A).

2. Loosen the locknut (B), then remove the clutch interlock switch (C).

3. Install the clutch interlock switch, and adjust the pedal height. Adjustments
