Seat Position Sensor: Service and Repair

Driver's Seat Position Sensor Replacement

Removal

NOTE: Do not turn the ignition switch to ON (II), and do not connect the battery cable while removing the driver's seat position sensor.

1. Do the battery terminal disconnection procedure, Procedures then wait at least 3 minutes before starting work.

2. Remove the driver's seat. Front Seat Removal/Installation

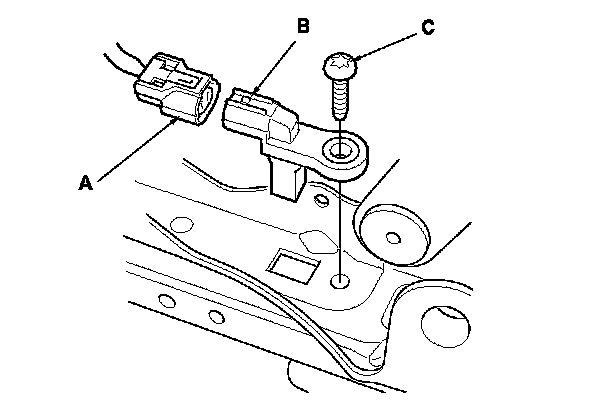

3. Disconnect the driver's seat position sensor harness 2P connector (A) from the driver's seat position sensor (B).

4. Remove the TORX bolt (C) using a TORX T30 bit, then remove the driver's seat position sensor.






Installation

NOTE:

- Be sure to install the harness so it does not pinched or interfere with other parts.

- Do not turn the ignition switch to ON (II), and do not connect the battery cable while installing the driver's seat position sensor.

- After installing the driver's seat position sensor, make sure it is clean. Keep it away from dust.

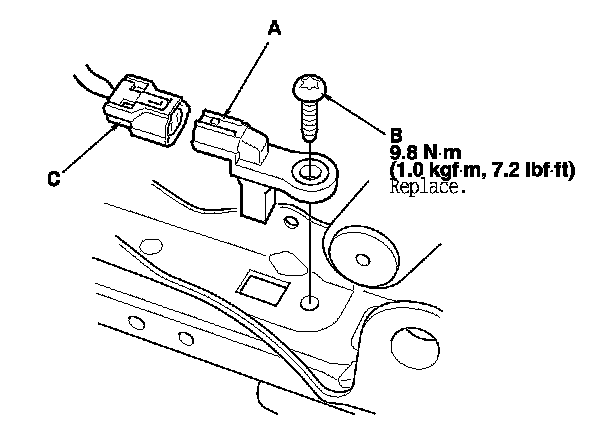

1. Install the driver's seat position sensor (A) with a new TORX bolt (B), using a TORX T30 bit.

2. Connect the driver's seat position sensor harness 2P connector (C) to the driver's seat position sensor.

3. Install the driver's seat. Front Seat Removal/Installation

4. Do the battery terminal reconnection procedure. Procedures

5. Clear any DTCs. Reading and Clearing Diagnostic Trouble Codes

6. Check the operation of the driver's seat position sensor with the HDS. Driver's Seat Position Sensor Operation Check

7. Confirm proper SRS operation: Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then go off.
