Safing Sensor: Service and Repair

Rear Safing Sensor Replacement

Removal

1. Do the battery terminal disconnection procedure, Procedures then wait at least 3 minutes before starting work.

2. Remove the rear seat cushion. Rear Seat Removal/Installation

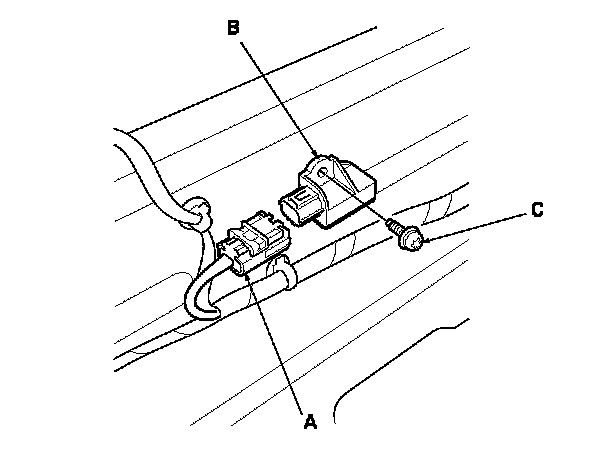

3. Disconnect the floor wire harness 4P connector (A) from the rear safing sensor (B).

4. Remove the TORX bolt (C) using a TORX T30 bit, then remove the rear safing sensor.






Installation

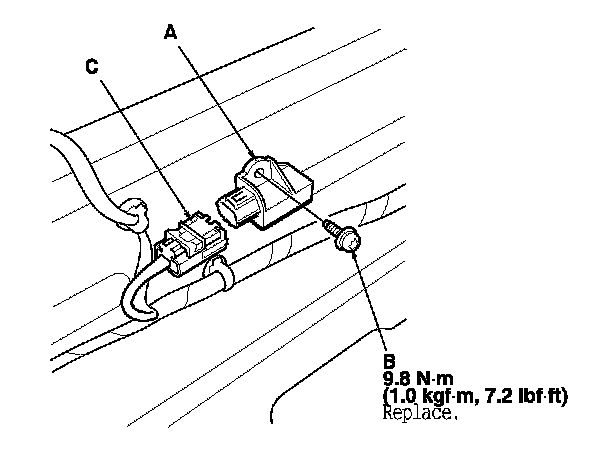

1. Install the rear safing sensor (A) with a new TORX bolt (B), using a TORX T30 bit.

2. Connect the floor wire harness 4P connector (C) to the rear safing sensor.

3. Do the battery terminal reconnection procedure. Procedures

4. Clear any DTCs. Reading and Clearing Diagnostic Trouble Codes

5. Confirm proper operation: Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then go off.

6. Reinstall all removed parts.
