Electric Load Sensor: Service and Repair

ELD Replacement

1. Remove the ECM. Service and Repair

2. Remove the under-hood fuse/relay box. Under-Hood Fuse/Relay Box Removal/Installation

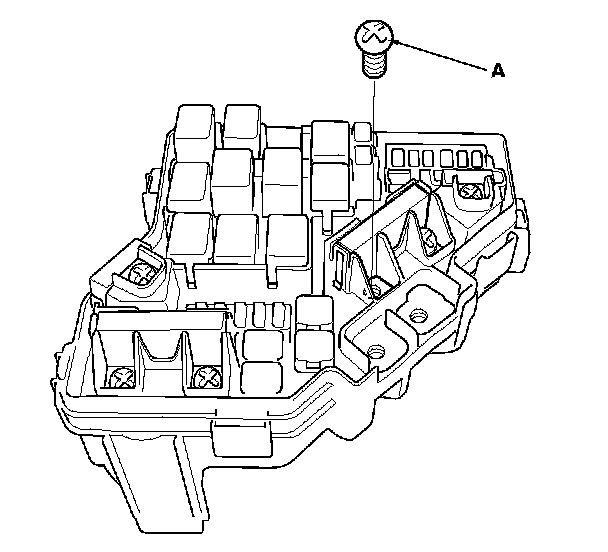

3. Remove the screw (A).

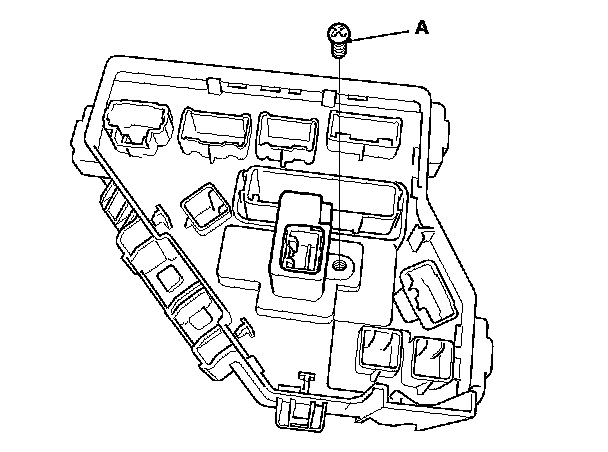

4. Turn the housing over, then remove the screw (A).

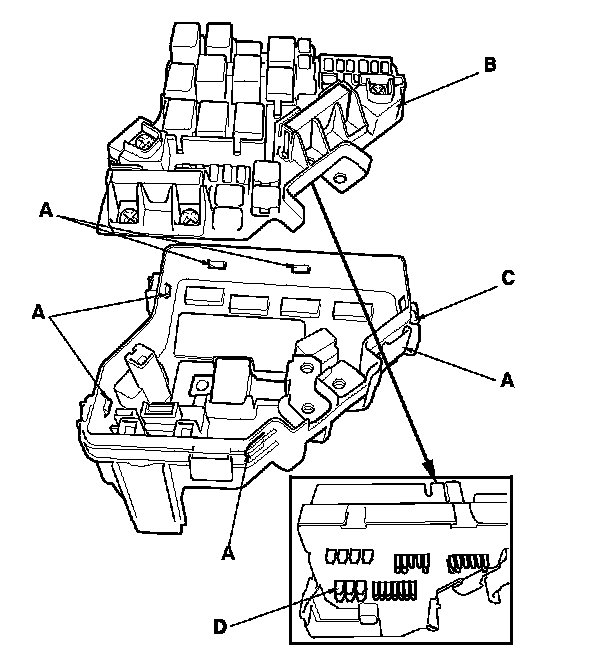

5. Turn the housing over again. Using two flat-tip screwdrivers, release the tabs (A), and pry up the fuse/relay box base (B) from the fuse/relay box housing (C).
NOTE: Make sure the terminals (D) are not bent or damaged.

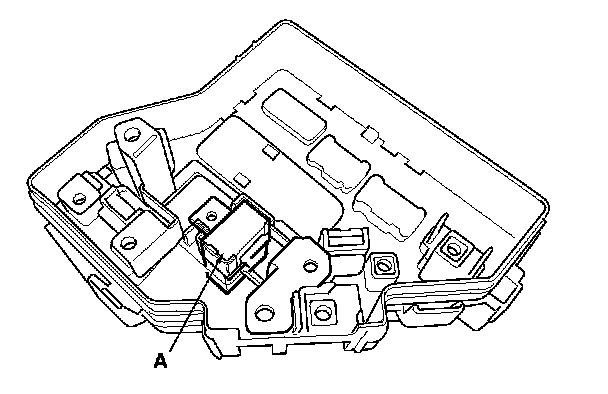

6. Turn the housing over again, then remove the ELD (A).

7. Install the parts in the reverse order of removal.
