Hazard Warning Switch: Service and Repair

Hazard Warning Switch Test/Replacement

1. Remove the center panel.
- Without Navigation system:

- '09-10 models Audio Unit Removal/Installation (Without Navigation, With Audio)

- With Navigation system:

- '09-10 models Audio-Navigation Unit Removal/Installation (With Navigation)

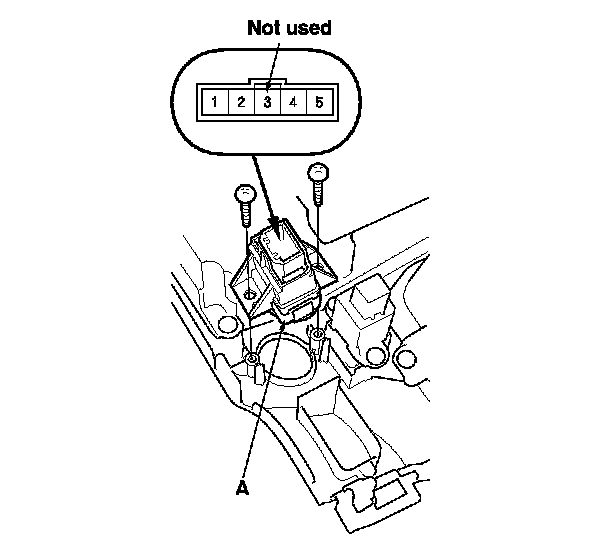

2. Remove the screws and the hazard warning switch (A).

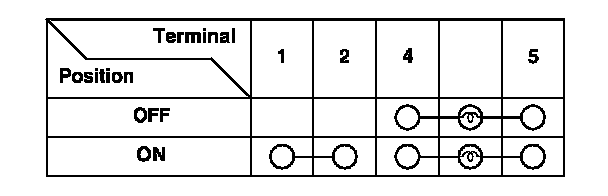

3. Check for continuity between the terminals in each switch position according to the table.

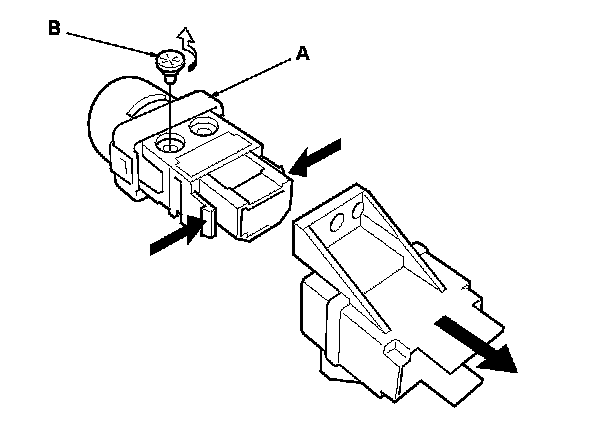

4. If the continuity is not as specified for terminals No. 1 and No. 2, replace the switch (A). If the continuity is not as specified for terminals No. 4 and No. 5, replace the bulb (B).

5. Install the switch in the reverse order of removal.
