Steering Angle Sensor: Service and Repair

VSA System Steering Angle Sensor Replacement

SRS components are located in this area. Review the SRS component locations: 4-door, SRS Component Location Index (4-Door) 2-door SRS Component Location Index (2-Door) and the precautions and procedures. Service and Repair

NOTE: Do not damage or drop the combination switch as the steering angle sensor is sensitive to shock and vibration.

1. With the wheels in the straight ahead position and the steering wheel centered, remove the steering wheel. Steering Wheel Removal

2. Remove the steering column covers and the cable reel. Service and Repair

3. Remove the combination switch assembly. Steering Column Removal/Installation

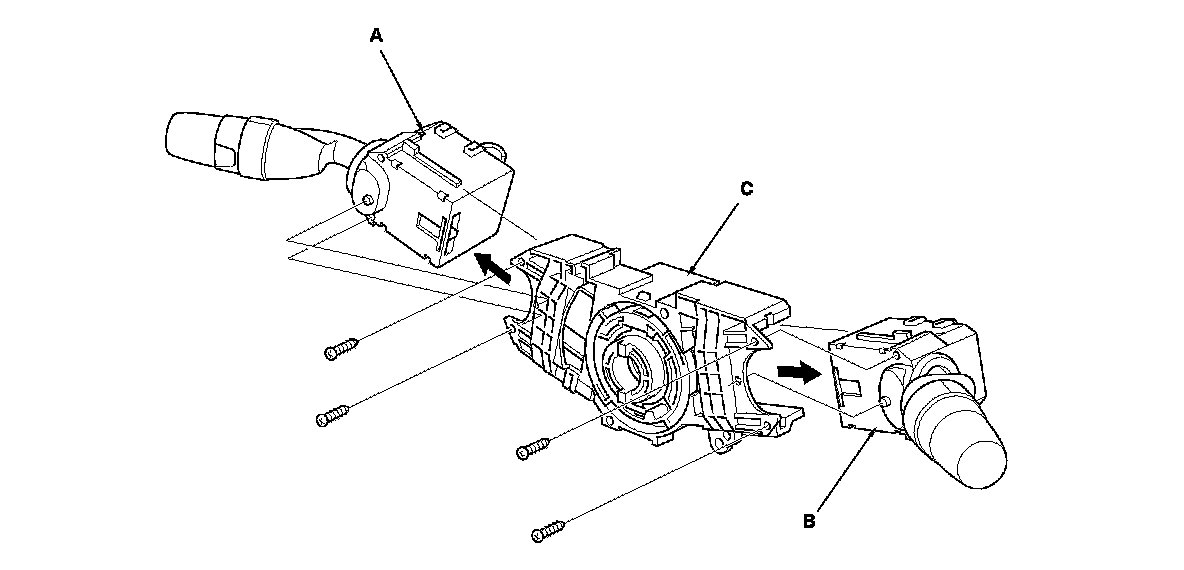

4. Remove the combination light switch (A) and the wiper/washer switch (B) from the combination switch body assembly (C).

5. Install the combination switch body assembly in the reverse order of removal.
NOTE:

- Do not remove the steering angle sensor from the combination switch body.

- When installing the cable reel, set the turn signal canceling sleeve position so that the arrow points straight up. Service and Repair

- Tighten the combination switch mounting screw in the proper sequence. Steering Column Removal/Installation
