Braking Sensor/Switch: Testing and Inspection

Brake Pedal Position Switch Test

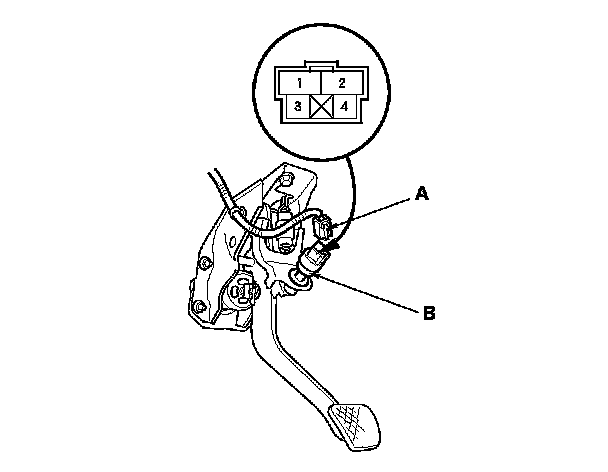

1. Disconnect the 4P connector (A) from the brake pedal position switch (B).

2. Check for continuity between terminals No. 1 and No. 2.
- There should be continuity when the brake pedal is pressed.

- There should be no continuity when the brake pedal is released.

3. Check for continuity between terminals No. 3 and No. 4 (with cruise control).
- There should be no continuity when the brake pedal is pressed.

- There should be continuity when the brake pedal is released.

4. If the test results are not as specified, adjust the switch, or adjust the pedal height. Adjustments If the results are still not as specified, replace the switch. Brake Pedal Replacement
