Rear Seat Belt Replacement

Rear Seat Belt Replacement

Rear Seat Belt

NOTE:

- Put on gloves to protect your hands.

- Take care not to or tear or damage the seat covers.

- Check the rear seat belts for damage Testing and Inspection, and replace them if necessary.

1. Remove the rear seat cushion. Rear Seat Removal/Installation

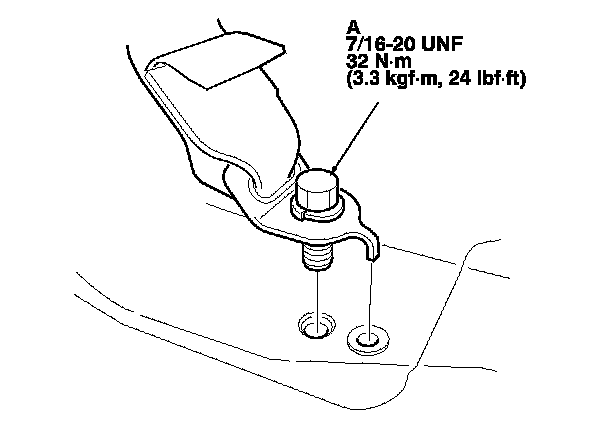

2. Remove the lower anchor bolt (A).

3. Remove these items:
- 2-door:
- Rear seat-back, fold down, Rear Seat Removal/Installationsplit fold down Rear Seat Removal/Installation

- Rear shelf Interior Trim Removal/Installation - Rear Shelf (GX Model)

- Rear shelf extension Interior Trim Removal/Installation - Rear Shelf Extension (2-Door)

- Rear side trim panel Interior Trim Removal/Installation - Rear Side Area (2-Door)

- 4-door:
- Rear seat side bolsters, both sides Rear Seat Removal/Installation

- C-pillar trims, both sides Interior Trim Removal/Installation - C-Pillar Trim (4-Door)

- Rear shelf Interior Trim Removal/Installation - Rear Shelf (4-Door Except GX Model)





4. Remove the retractor bolt (A), then remove the rear seat belt (B) and the retractor (C).

5. Install the seat belt and the retractor in the reverse order of removal, and note these items:
- Check that the retractor locking mechanism functions. Testing and Inspection

- Apply medium strength liquid thread lock to the lower anchor bolt before reinstallation.

- Before installing the anchor bolt, make sure there are no twists or kinks in the seat belt.





Rear Center Seat Belt and Rear Seat Belt Buckles

NOTE:

- Put on gloves to protect your hands.

- Take care not to or tear damage the seat covers.

- Check the center seat belts for damage, Testing and Inspection and replace them if necessary.

1. Remove the rear seat cushion. Rear Seat Removal/Installation

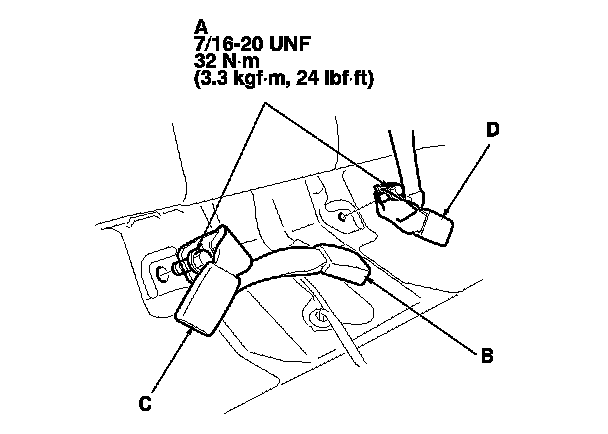

2. Remove the center anchor bolts (A), then remove the right seat belt buckle (B), the center seat belt buckle (C), and the left seat belt buckle (D).






3. Fold both rear seat-backs forward.

4. Remove these items:
- 2-door: Rear shelf Interior Trim Removal/Installation - Rear Shelf (GX Model)

- 4-door:
- Rear seat side bolsters, both sides Rear Seat Removal/Installation

- C-pillar trims, both sides Interior Trim Removal/Installation - C-Pillar Trim (4-Door)

- Rear shelf Interior Trim Removal/Installation - Rear Shelf (4-Door Except GX Model)

5. Remove the retractor mounting ET screw (A) (4-door) and the retractor bolt (B), then remove the rear seat belt (C) and the retractor (D).

6. If necessary, remove the rear center seat belt protector (E).

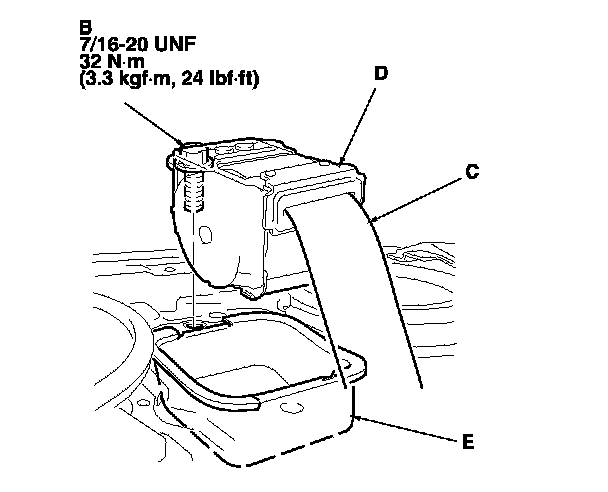

2-door

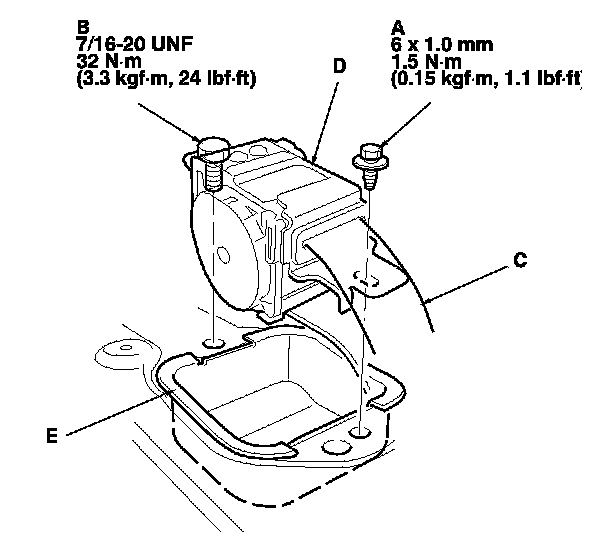

4-door





7. Install the seat belt and the buckles in the reverse order of removal, and note these items:
- Check that the retractor locking mechanism functions. Testing and Inspection

- Assemble the washers on the center anchor bolt as shown.

- Apply medium strength liquid thread lock to the center anchor bolts before reinstallation.

- Tighten the bolt to the specified torque.

- Before installing the center anchor bolt, make sure there are no twists or kinks in the seat belt.

- Make sure the rear center emergency locking retractor (ELR) is pointing straight forward.

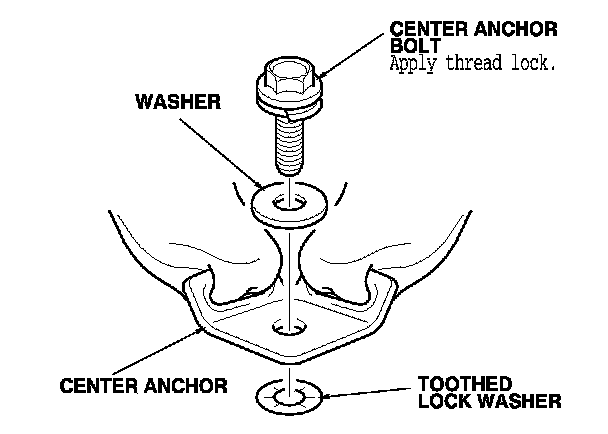

Center anchor bolt installation '06 model

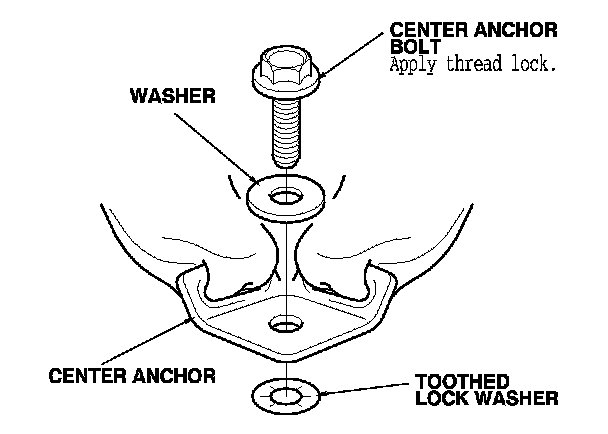

Center anchor bolt installation '07-10 models
