Ignition Key Switch Test

Ignition Key Switch Test

1. Remove the steering column upper and lower covers. Steering Column Cover Removal/Installation

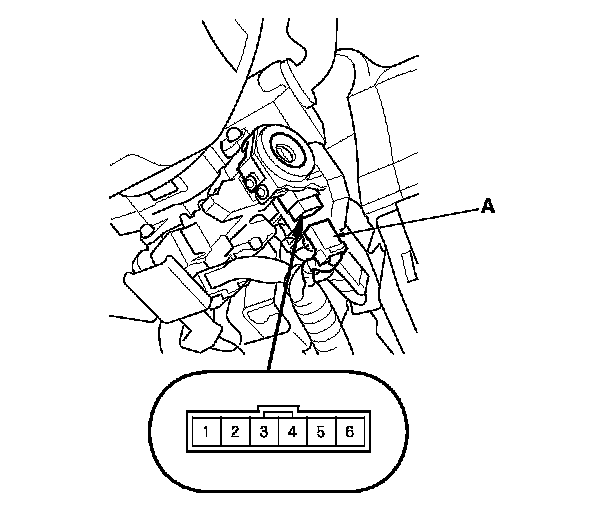

2. Disconnect the 6P connector (A).

3. Check for continuity between terminals No. 1 and No. 2.
- There should be continuity with the key in the ignition switch.

- There should be no continuity with the key removed.

4. If the continuity is not as specified, the ignition key switch is faulty, replace the steering lock assembly.
