Emission Control Systems: Application and ID

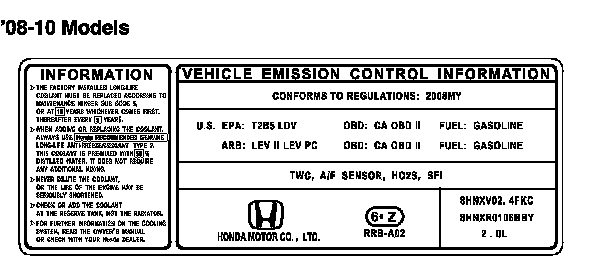

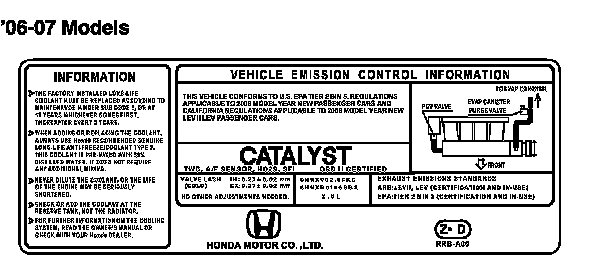

Under-hood Emission Control Label

Emission Group Identification

K20Z3 engine Model

Example:









'06 Model

THIS VEHICLE CONFORMS TO U.S. EPA TIER 2 BIN 5 REGULATIONS APPLICABLE TO 2006 MODEL YEAR NEW PASSENGER CARS AND CALIFORNIA REGULATIONS APPLICABLE TO 2006 MODEL YEAR NEW LEV II LEV PASSENGER CARS.

'07 Model

THIS VEHICLE CONFORMS TO U.S. EPA TIER 2 BIN 5 REGULATIONS APPLICABLE TO 2007 MODEL YEAR NEW PASSENGER CARS AND CALIFORNIA REGULATIONS APPLICABLE TO 2007 MODEL YEAR NEW LEV II LEV PASSENGER CARS.

'08 Model

CONFORMS TO REGULATIONS: 2008 MY

'09 Model

CONFORMS TO REGULATIONS: 2009 MY

'10 Model

CONFORMS TO REGULATIONS: 2010 MY

Test Group and Evaporative Family

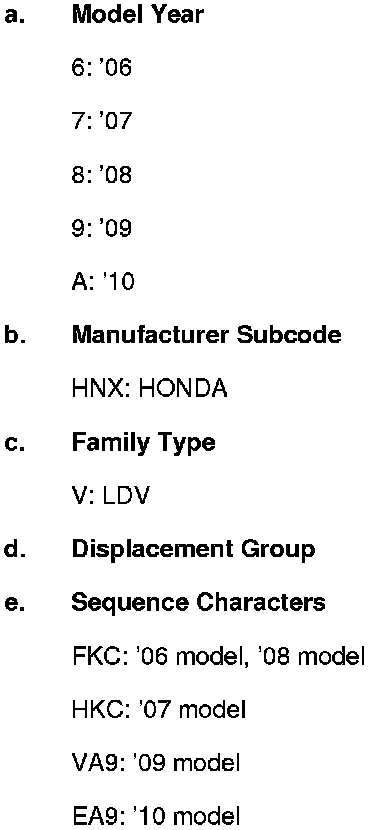

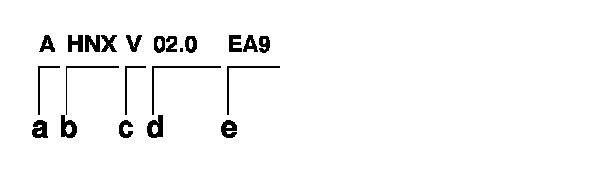

Test Group:

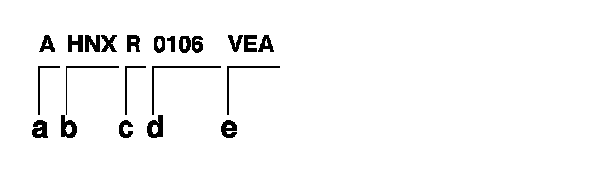

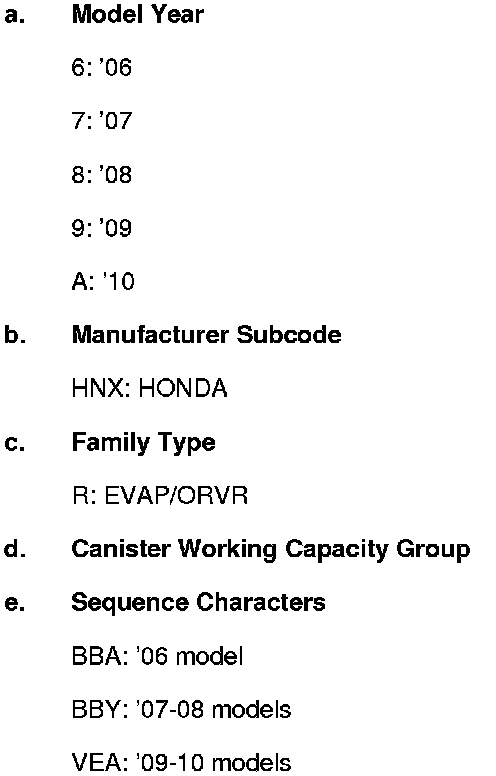

Evaporative Family:
