Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Locations >> Harness Locations >> Roof Wire Harness Connector and Harness Locations (2-door) (Moonroof)

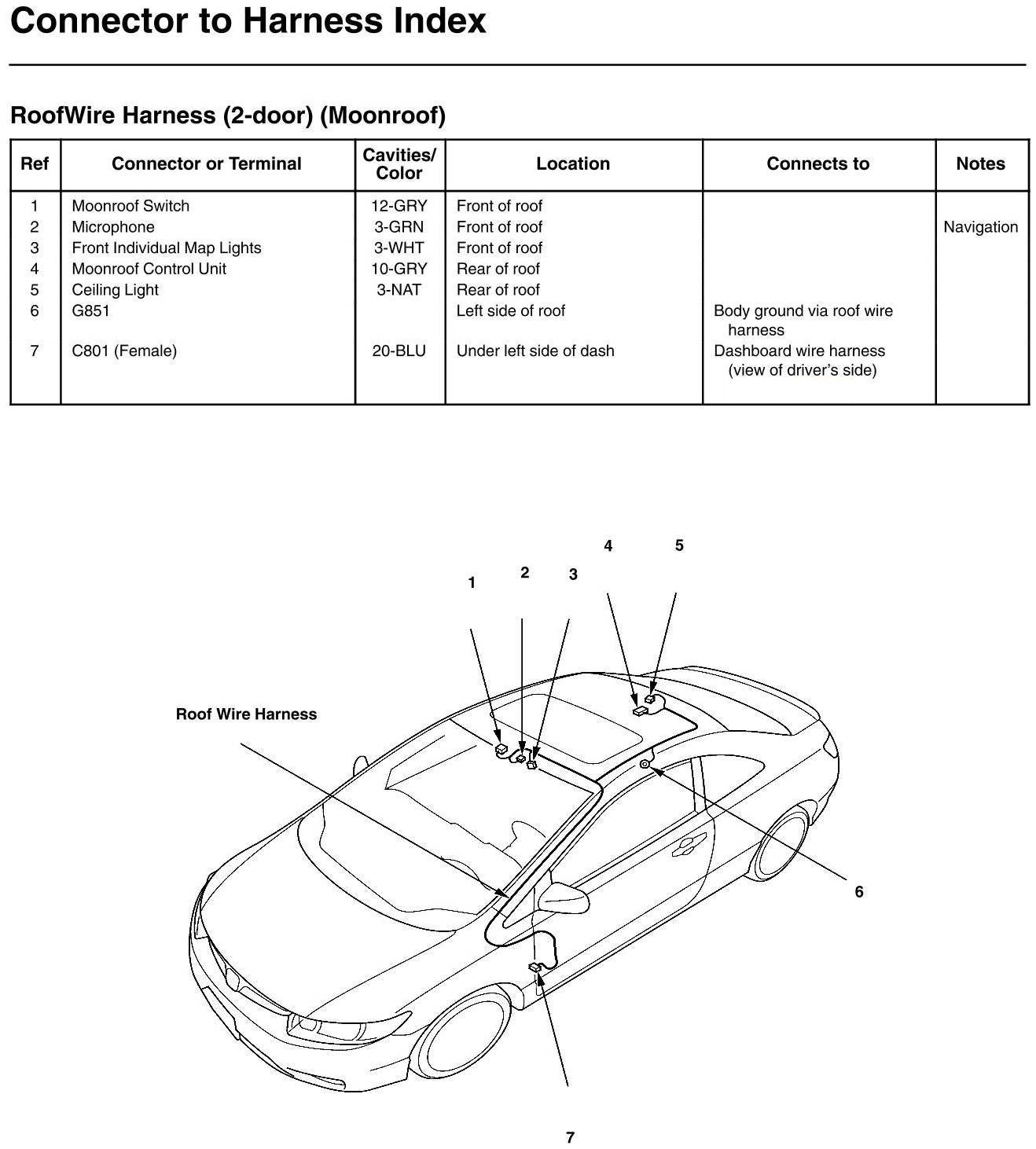

Roof Wire Harness Connector and Harness Locations (2-door) (Moonroof)
