Front Individual Map Light Test/Replacement (Without Moonroof)

Front Individual Map Light Test/Replacement

Without moonroof

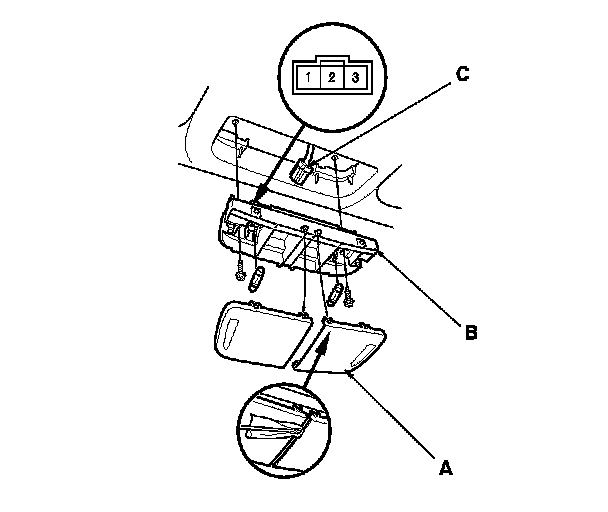

1. Turn the front individual map light switch OFF.

2. Carefully pry the lens (A) off with a small screwdriver.





3. Remove the screws, then remove the front individual map lights (B).

4. Disconnect the 3P connector (C) from the map lights.

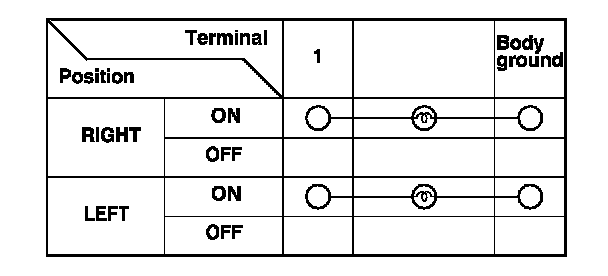

5. Check for continuity between the terminals in each switch position according to the table.

6. If the continuity is not as specified, check the bulb(s). If the bulb(s) are OK, replace the light.

7. Install the front map light in the reverse order of removal.
