Inner Taillight Replacement (4-Door)

Inner Taillight Replacement

4-door

1. Open the trunk lid, and remove the rear license trim. Service and Repair

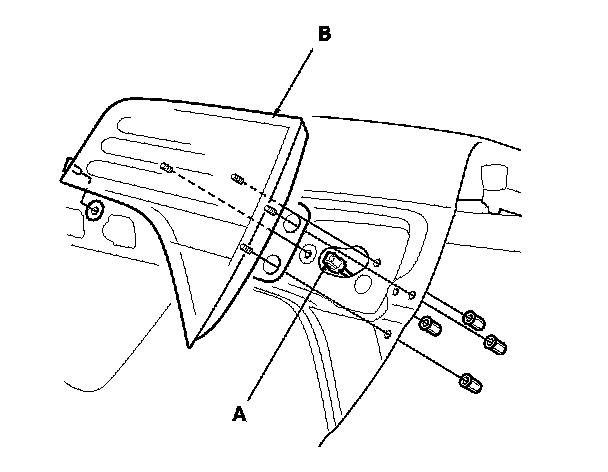

2. Disconnect the connector (A) from the inner taillight (B).





3. Turn the bulb sockets 45 ° counterclockwise to remove the bulb.

4. Remove the nuts, then remove the taillight.

5. Install the taillight in the reverse order of removal.
