Rear Crankshaft Main Bearing Seal: Service and Repair

Transmission End Crankshaft Oil Seal Installation - In Car

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Oil seal driver attachment, 96 mm 07ZAD-PNAA100
1. Remove the transmission. Manual Transmission Removal

2. Remove the pressure plate, Service and Repair the clutch disc, Service and Repair and the flywheel. Service and Repair

3. Clean and dry the crankshaft oil seal housing.

4. Apply a light coat of new engine oil to the crankshaft and to the lip of the crankshaft oil seal.

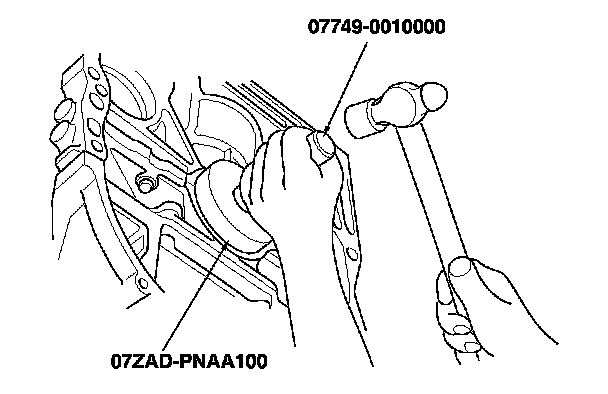

5. Use the driver handle, 15 x 135L and the oil seal driver attachment, 96 mm to drive a new oil seal squarely into the engine block to the specified installed height.

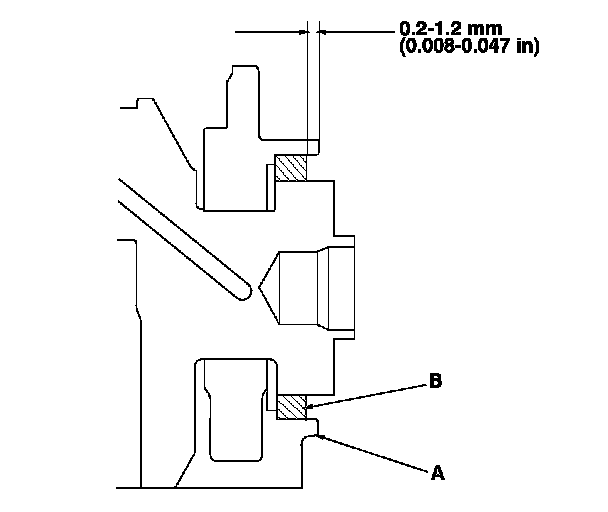

6. Measure the distance between the engine block (A) and the crankshaft oil seal (B).





7. Install the flywheel, Service and Repair the clutch disc, Service and Repair and the pressure plate. Service and Repair

8. Install the transmission. Manual Transmission Installation
