Oil Spray Jet: Testing and Inspection

Engine Oil Jet Inspection

'06-09 models

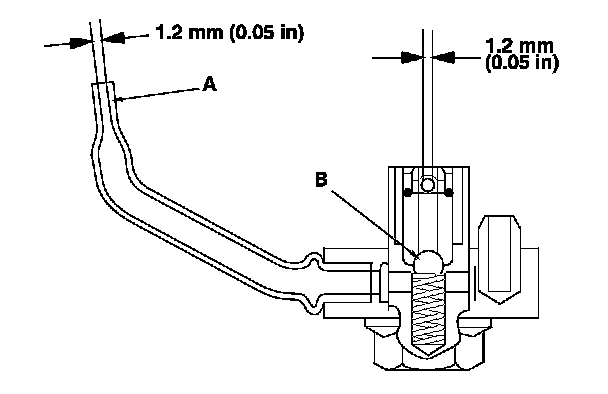

1. Remove the oil jet, and inspect it as follows.
- Make sure that a 1.1 mm (0.04 in) diameter drill will go through the nozzle hole (A) (1.2 mm (0.05 in) diameter).

- Insert the other end of a 1.1 mm (0.04 in) drill into the oil intake (1.2 mm (0.05 in) diameter).
Make sure the check ball (B) moves smoothly and has a stroke of about 4.0 mm (0.16 in).

- Check the oil jet operation with an air nozzle. It should take at least 200 kPa (2.0 kgf/cm2, 28 psi) to unseat the check ball.

2. Carefully install the oil jet. The mounting torque is critical.






'10 model

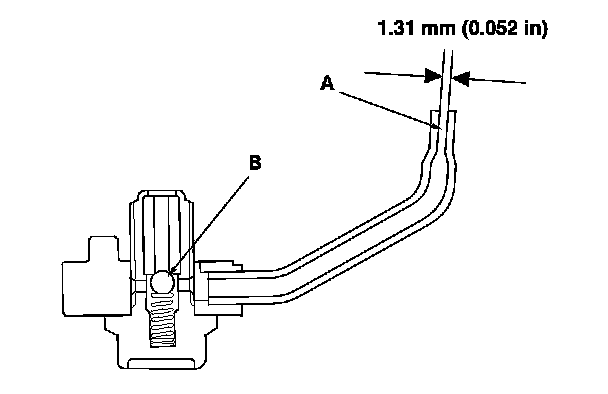

1. Remove the oil jet, and inspect it as follows.
- Make sure that a 1.2 mm (0.05 in) diameter drill will go through the nozzle hole (A) (1.31 mm (0.052 in) diameter).

- Insert the other end of a 1.9 mm (0.07 in) drill into the oil intake (2.0 mm (0.079 in) diameter).
Make sure the check ball (B) moves smoothly and has a stroke of about 2.0 mm (0.079 in).

- Check the oil jet operation with an air nozzle. It should take at least 325 kPa (3.3 kgf/cm2, 47 psi) to unseat the check ball.

2. Carefully install the oil jet. The mounting torque is critical.
