Oil Cooler: Service and Repair

Engine Oil Cooler Replacement

1. Drain the engine oil. Service and Repair

2. Remove the oil filter. Service and Repair

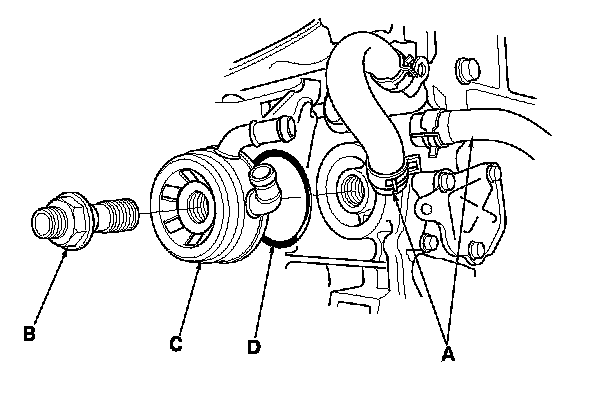

3. Disconnect the oil cooler bypass hoses (A) and remove the oil cooler center bolt (B), then remove the oil cooler (C).

4. Install the oil cooler using a new O-ring (D). Torque the oil cooler center bolt to 74 N-m (7.5 kgf-m, 54 lbf-ft).

5. Connect the oil cooler bypass hoses.

6. Install the oil filter. Service and Repair

7. Refill the radiator with engine coolant, and bleed the air from the cooling system. Service and Repair
