Drive Belt Idler Pulley Replacement




Drive Belt Idler Pulley Replacement

1. Remove the drive belt. Service and Repair

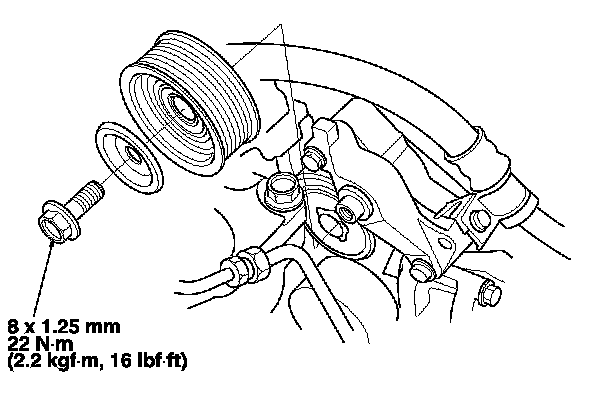

2. Remove the idler pulley.

3. Install the idler pulley in the reverse order of removal.
