Drive Belt Idler Pulley Base Removal/Installation

Drive Belt Idler Pulley Base Removal/Installation

Electrical Power Steering (EPS) model

1. Remove the drive belt. Service and Repair

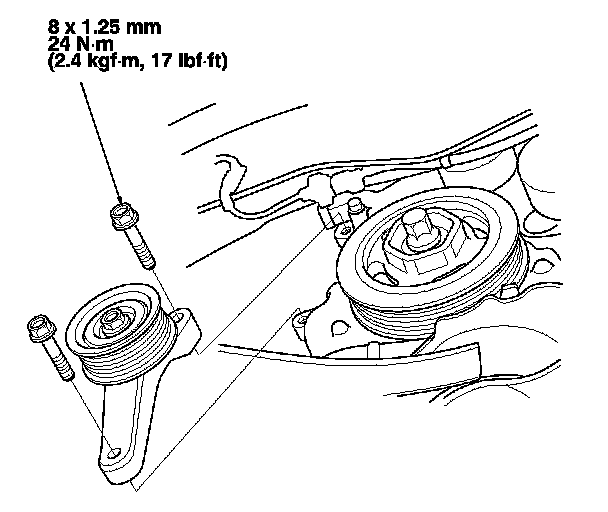

2. Remove the idler pulley base.

3. Install the idler pulley base in the reverse order of removal.
