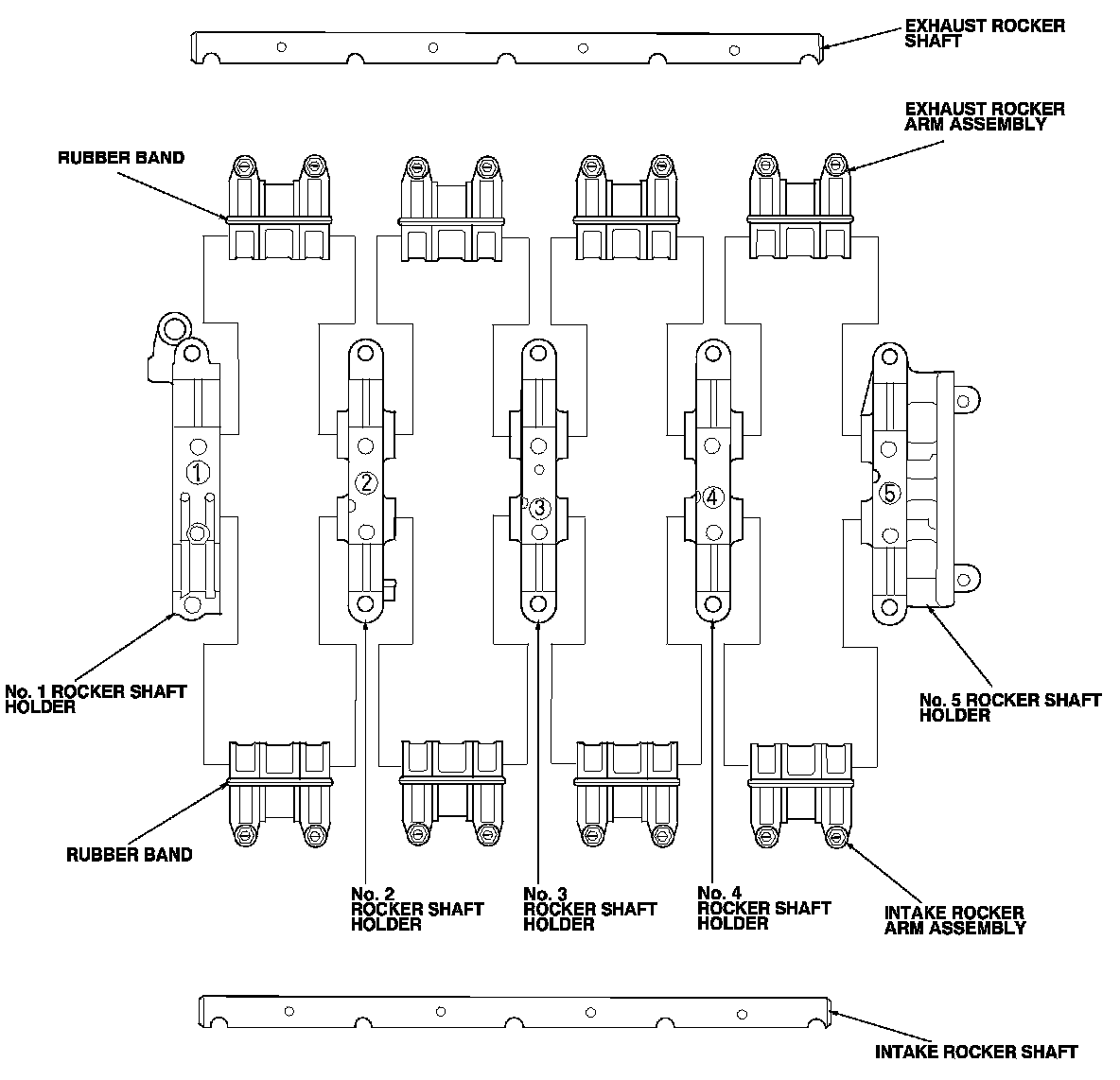

Rocker Arm and Shaft Disassembly/Reassembly

Rocker Arm and Shaft Disassembly/Reassembly

NOTE:

- Identify each part as it is removed so that each item can be reinstall in their original locations.

- Inspect the rocker shafts and the rocker arms. Rocker Arm and Shaft Inspection

- If reused, the rocker arms must be installed in their original locations.

- When removing, or installing the rocker arm assembly, do not remove the camshaft holder bolts. The bolts will keep the holders and rocker arms on the shaft.

- Prior to reassembling, clean all the parts in solvent, dry them, and apply new engine oil to any contact points.

- Bundle the rocker arms with rubber bands to keep them together as a set.

- When replacing the VTEC rocker arm assembly, remove the fastening hardware from the new VTEC rocker arm assembly.
