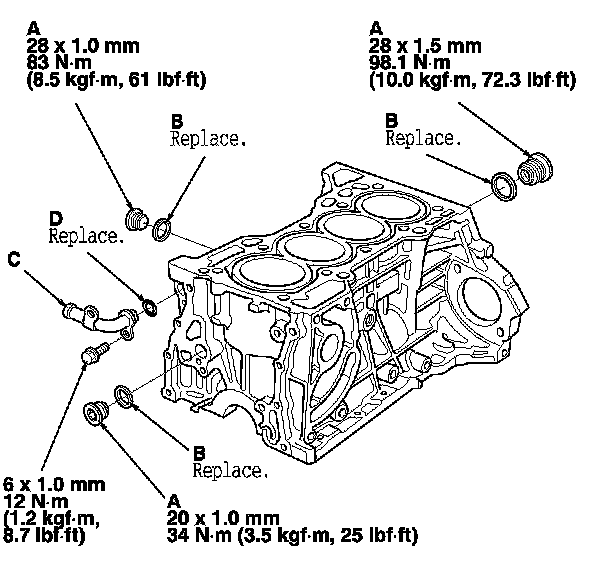

Engine Block Sealing Bolt and Joint Pipe Installation

Engine Block Sealing Bolt and Joint Pipe Installation

NOTE:

- When installing the sealing bolts (A), always use a new washer (B).

- When installing the joint pipe (C), always use a new O-ring (D).
