Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Harness >> Rear Wire Harness And Trunk Lid Spoiler Subharness (Left Branch) Connector And Harness Locations (2-Door)

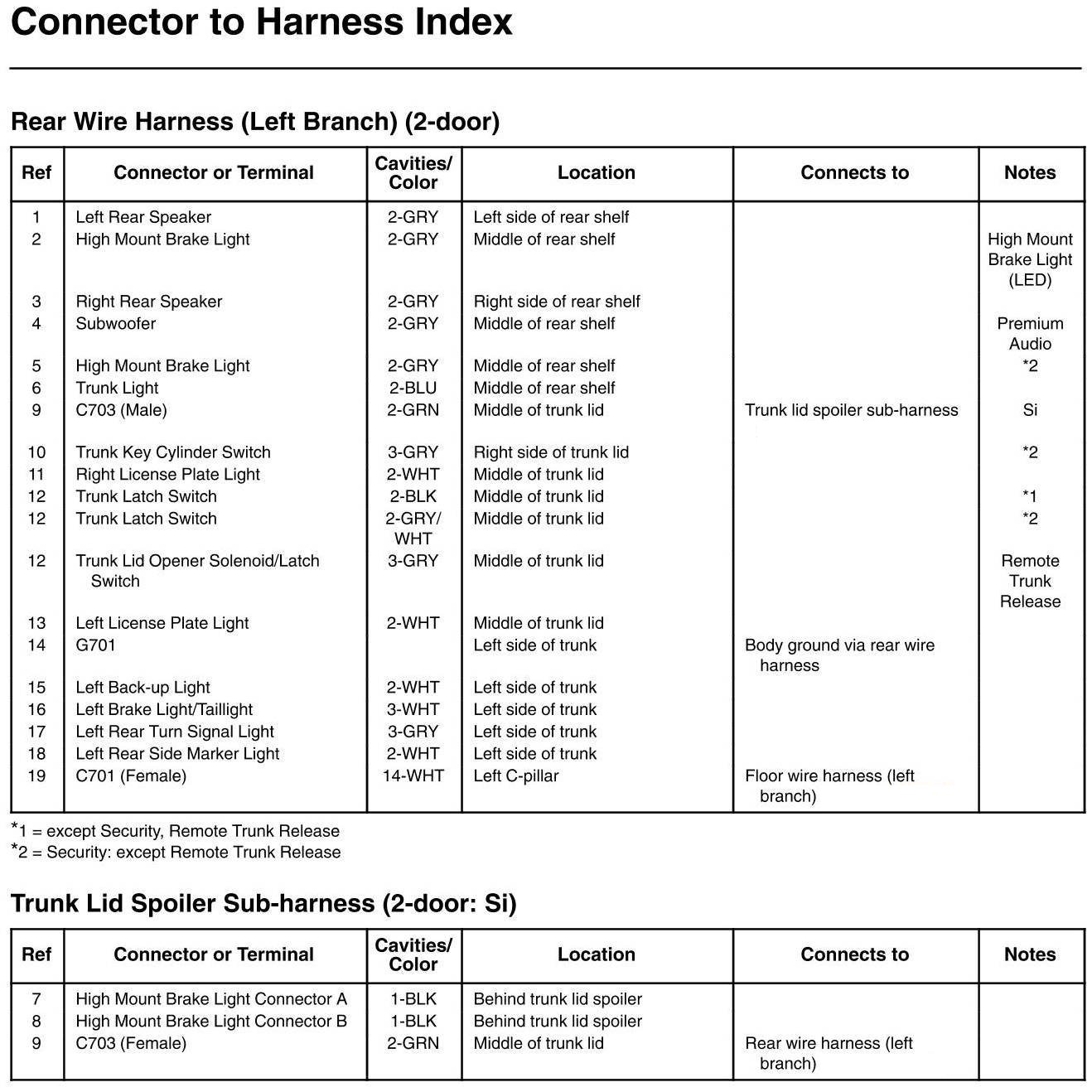

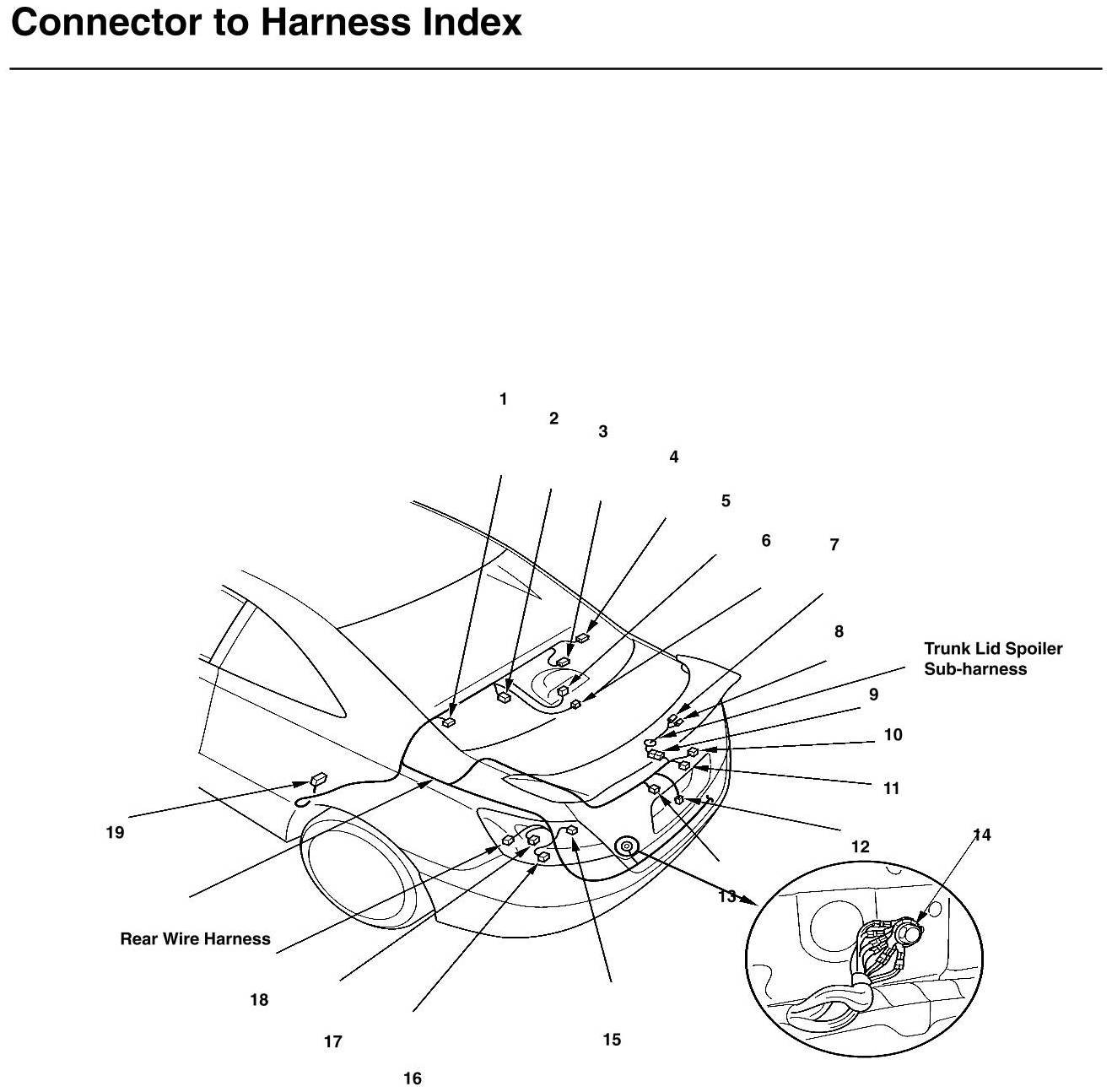

Rear Wire Harness And Trunk Lid Spoiler Subharness (Left Branch) Connector And Harness Locations (2-Door)
