Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Harness >> Rear Wire Harness (Right Branch) And Rear Window Defogger Ground Wire Connector And Harness Locations (4-Door)

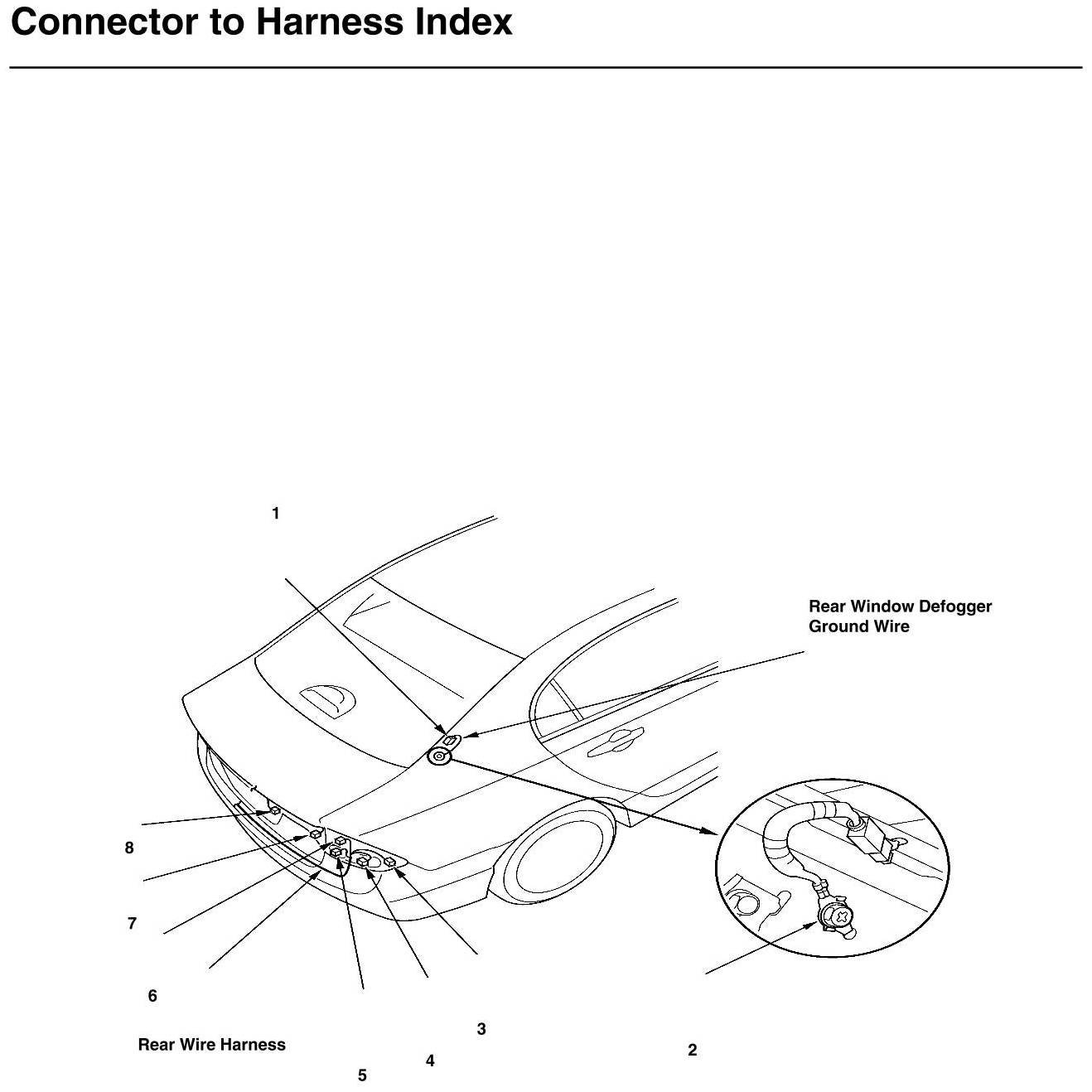

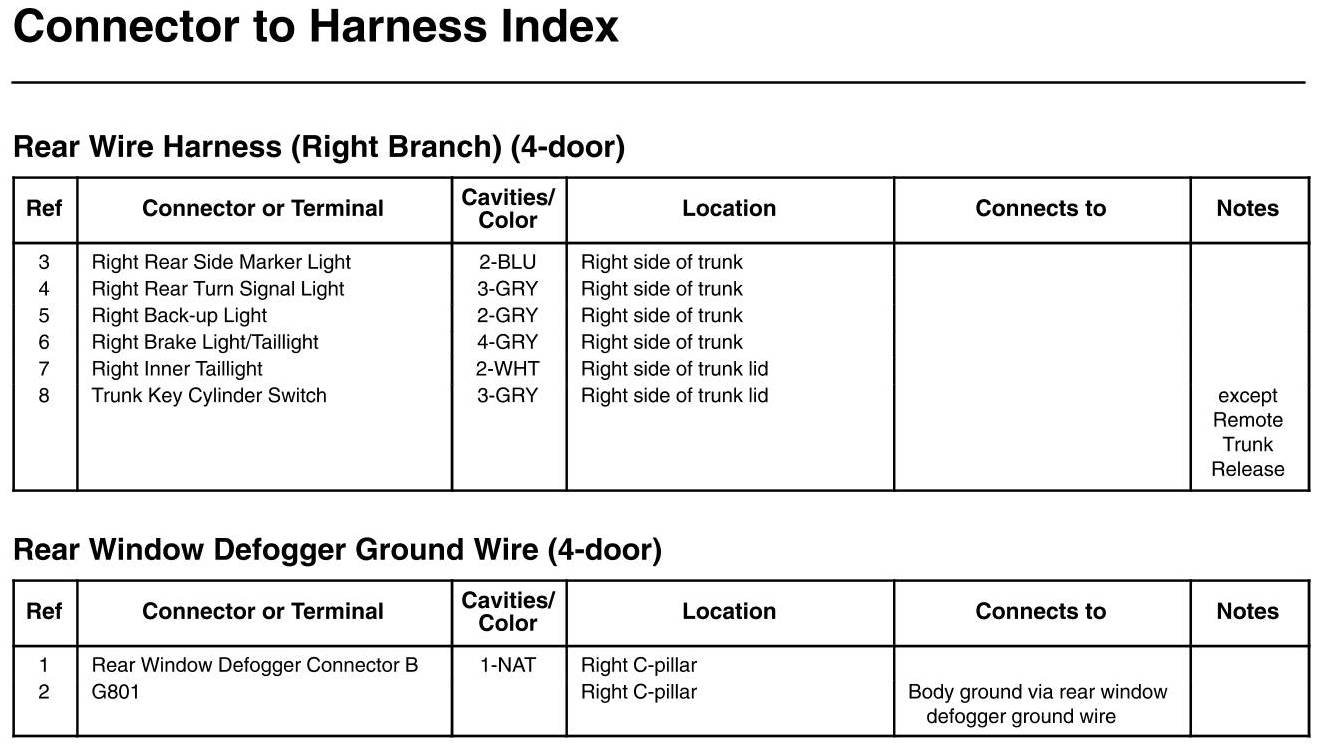

Rear Wire Harness (Right Branch) And Rear Window Defogger Ground Wire Connector And Harness Locations (4-Door)
