Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Harness >> Floor Wire Harness, Coil Subharness, And USB Harness (Left Branch) Connector And Harness Locations (2-Door)

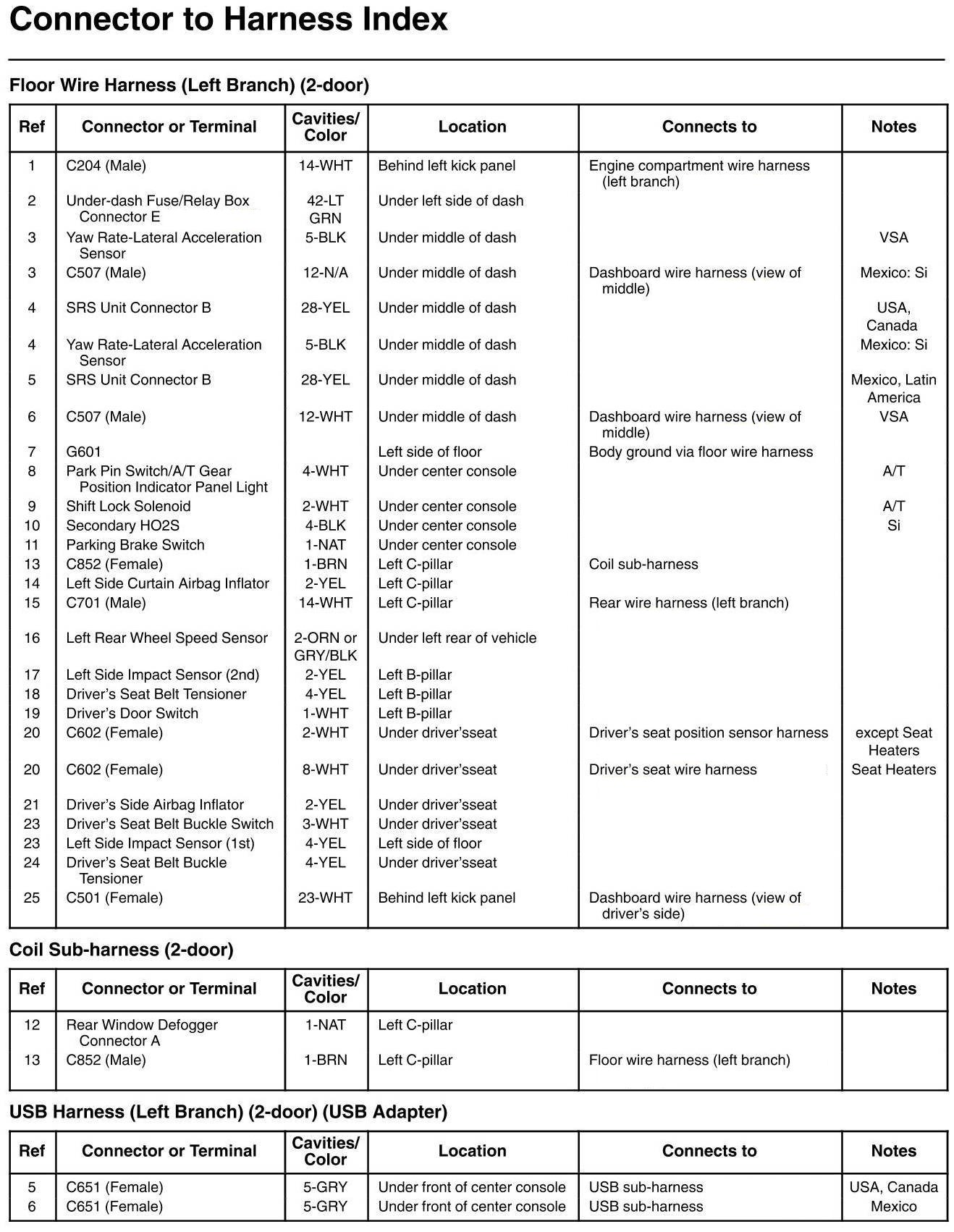

Floor Wire Harness, Coil Subharness, And USB Harness (Left Branch) Connector And Harness Locations (2-Door)
