Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Lock Switch >> Trunk Lid Opener Solenoid/Latch Switch Connector View (Remote Trunk Release)

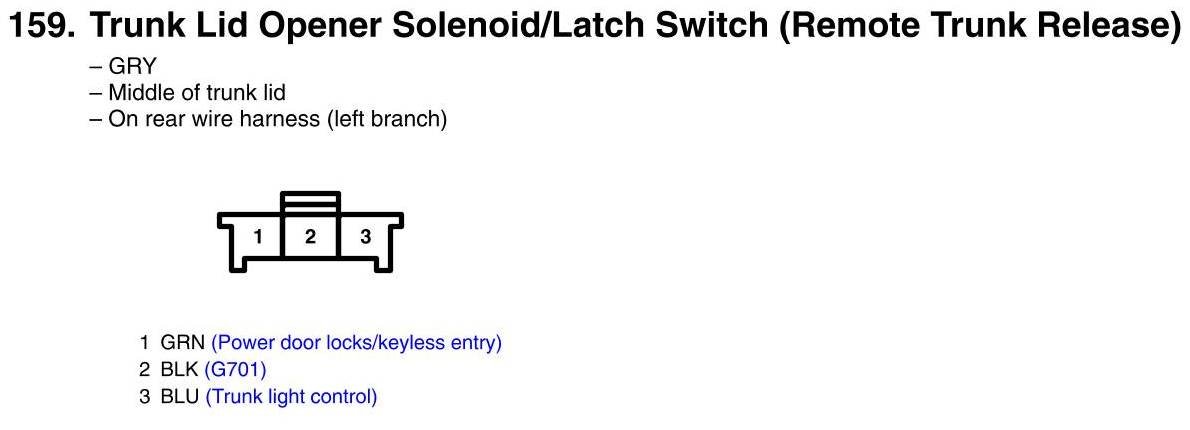

Trunk Lid Opener Solenoid/Latch Switch Connector View (Remote Trunk Release)
