Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 91 - Remote Starting System In-line Fuse B Connector View (Honda Accessory: A/T)

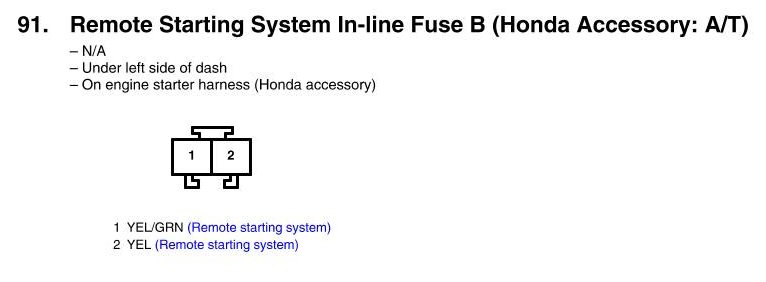

View 91 - Remote Starting System In-line Fuse B Connector View (Honda Accessory: A/T)
