Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 88 - PSP Switch Connector View (except EPS)

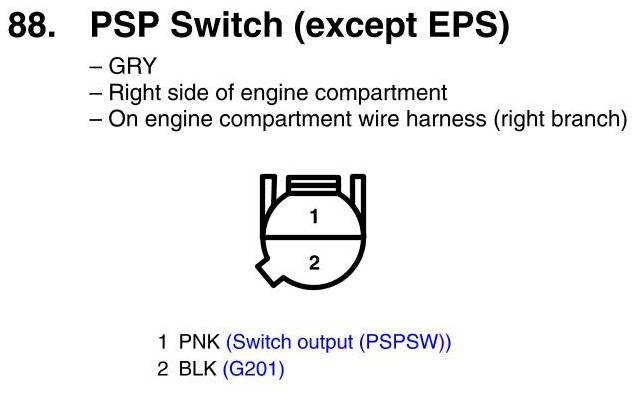

View 88 - PSP Switch Connector View (except EPS)
