Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 306 - XM Receiver Connector View (Honda Accessory) (XM Radio)

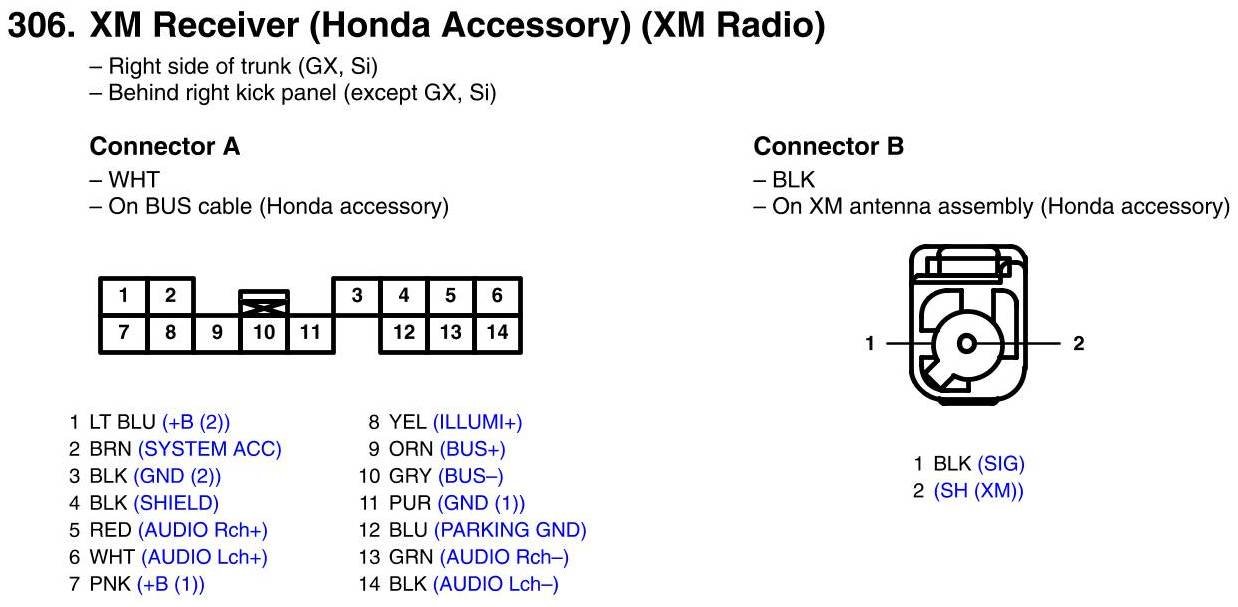

View 306 - XM Receiver Connector View (Honda Accessory) (XM Radio)
