Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 294 - Power Window Cut Relay And Start Relay Connector View (Honda Accessory: A/T)

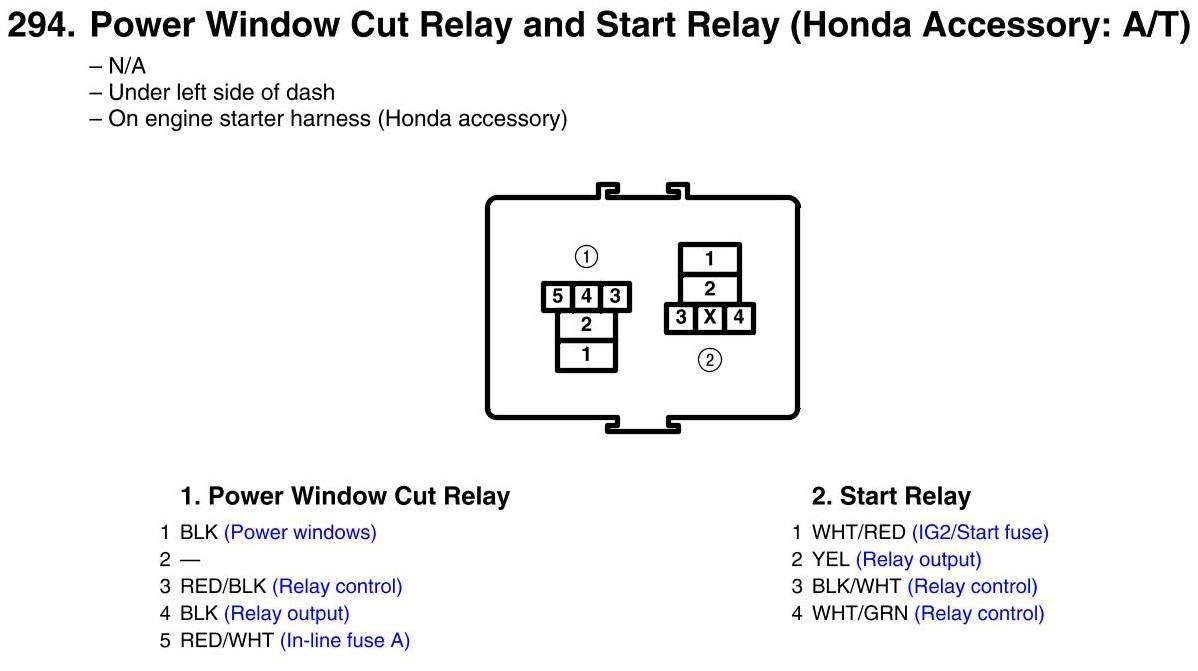

View 294 - Power Window Cut Relay And Start Relay Connector View (Honda Accessory: A/T)
