Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 278 - C552 Connector View (Navigation)

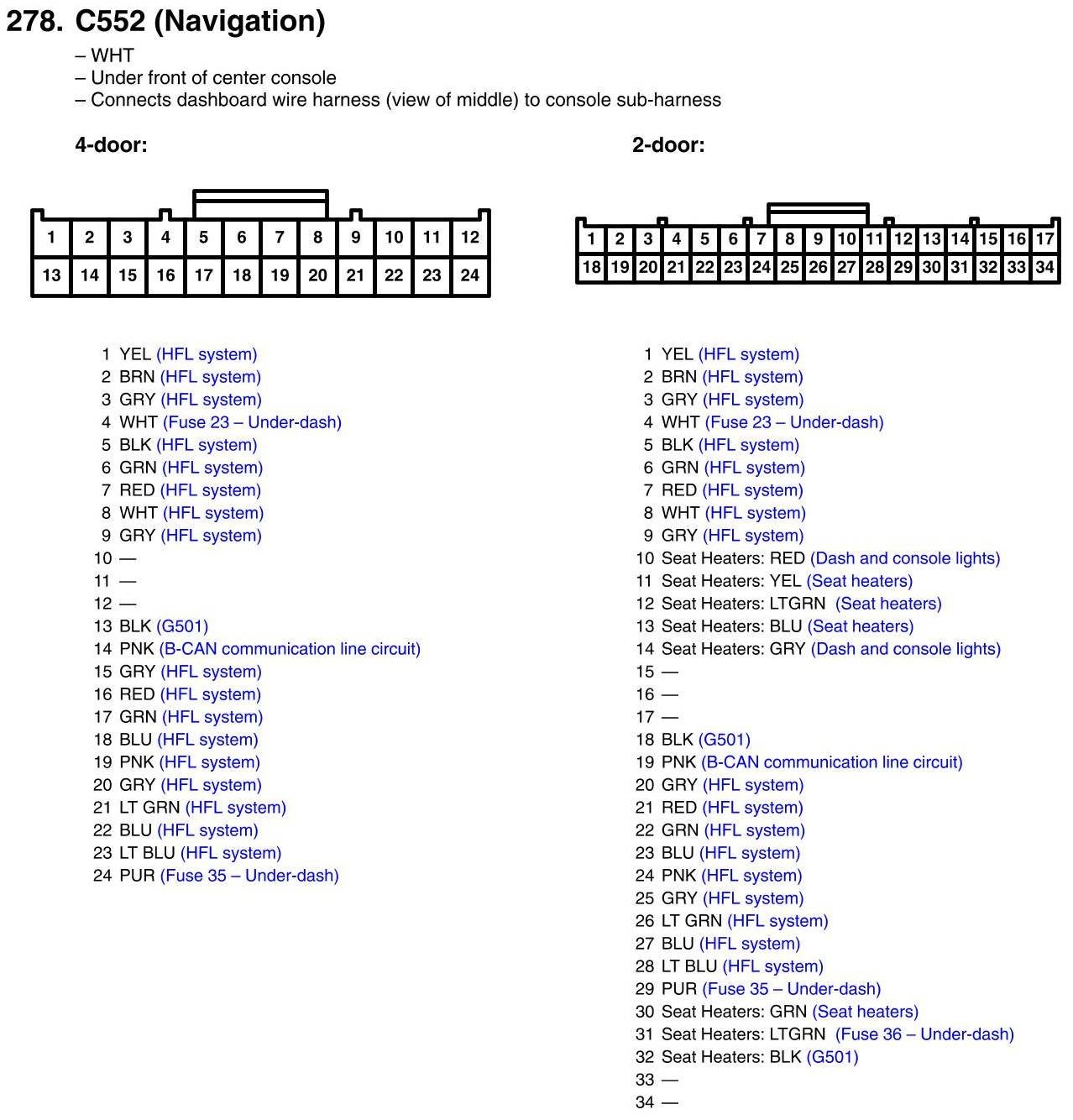

View 278 - C552 Connector View (Navigation)
