Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 249 - In-Dash CD Changer/Cassette Player/Multimedia Player Connector View (Honda Accessory: except Audio Unit (Factory))

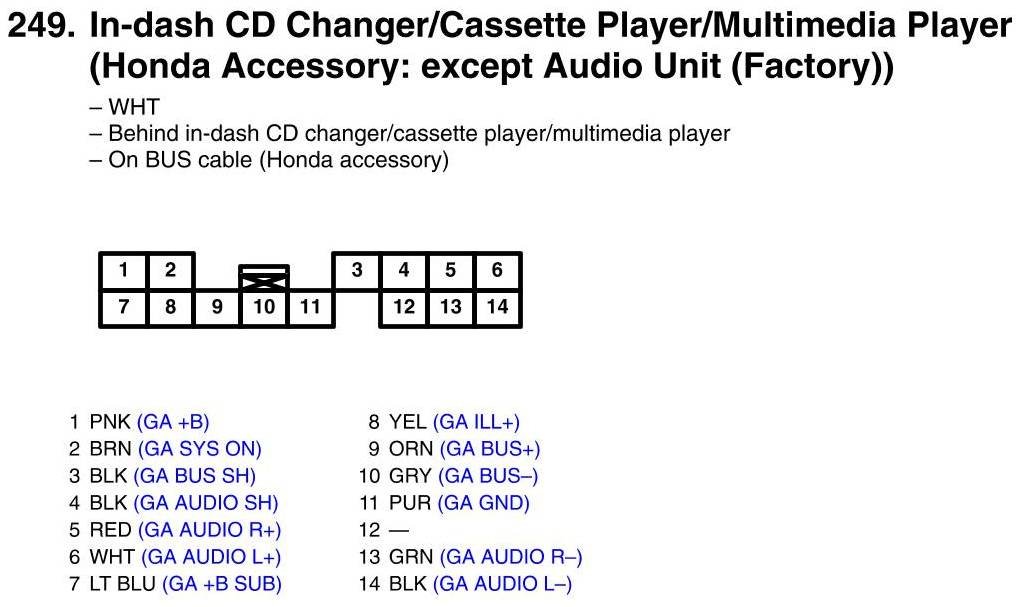

View 249 - In-Dash CD Changer/Cassette Player/Multimedia Player Connector View (Honda Accessory: except Audio Unit (Factory))
